Starting System & Charging System (H6DO): Generator: Removal

Disconnect the ground cable from battery.

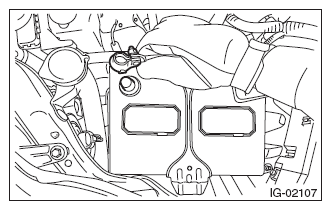

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the V-belts. < Refer to REMOVAL , V-belt. >
Disconnect the connector and terminal from generator.

Fig 2: Locating Generator, Terminal And Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the collector cover bracket or v-belt cover bracket.

Fig 3: Locating Collector Cover Bracket Or V-Belt Cover Bracket Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the generator from the bracket.

Fig 4: Locating Generator Bracket Mounting Bolt
Courtesy of SUBARU OF AMERICA, INC.
