Electronic Throttle Control Relay: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the glove box lid assembly. Refer to REMOVAL .
  3. Remove the electronic throttle control relay.

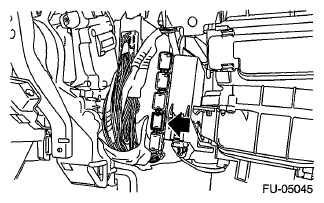

    Fig 1: Locating Electronic Throttle Control Relay
    G06651306Courtesy of SUBARU OF AMERICA, INC.
