Fuel Pump Relay: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the glove box lid assembly. Refer to REMOVAL .
  3. Remove the fuel pump relay.

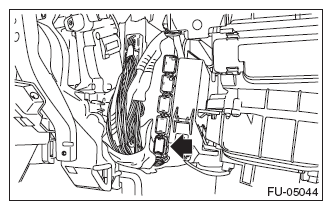

    Fig 1: Locating Fuel Pump Relay
    G07912374Courtesy of SUBARU OF AMERICA, INC.
