Engine harness assembly diagram 2
Engine harness assembly diagram 2

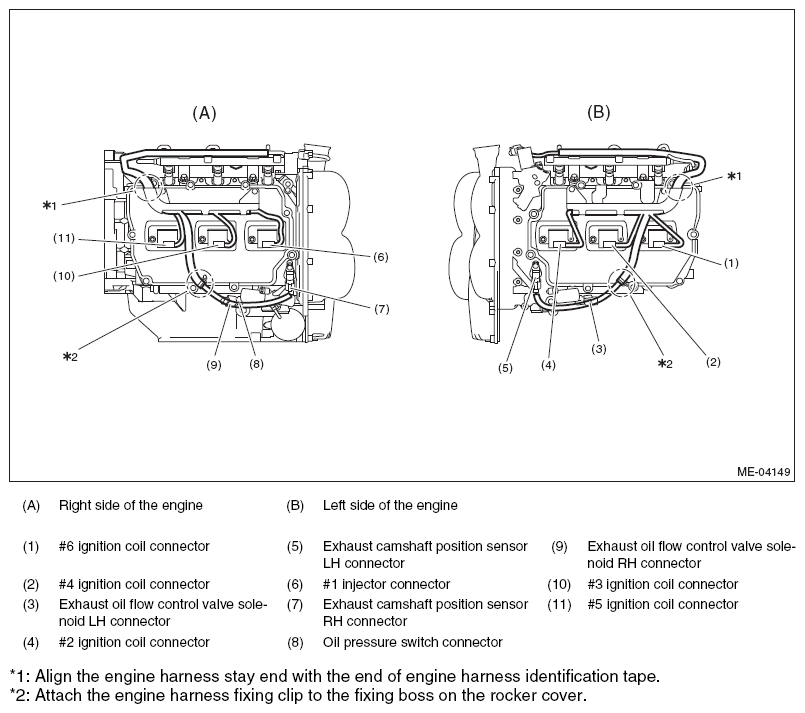

Fig 1: Identifying Engine Harness Assembly And Related Components (Engine Harness Assembly Diagram 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
