Fuel Injection System (H6DO)
›
General Description
›
Components With Torque Specifications
›
Fuel Pump
Fuel Pump

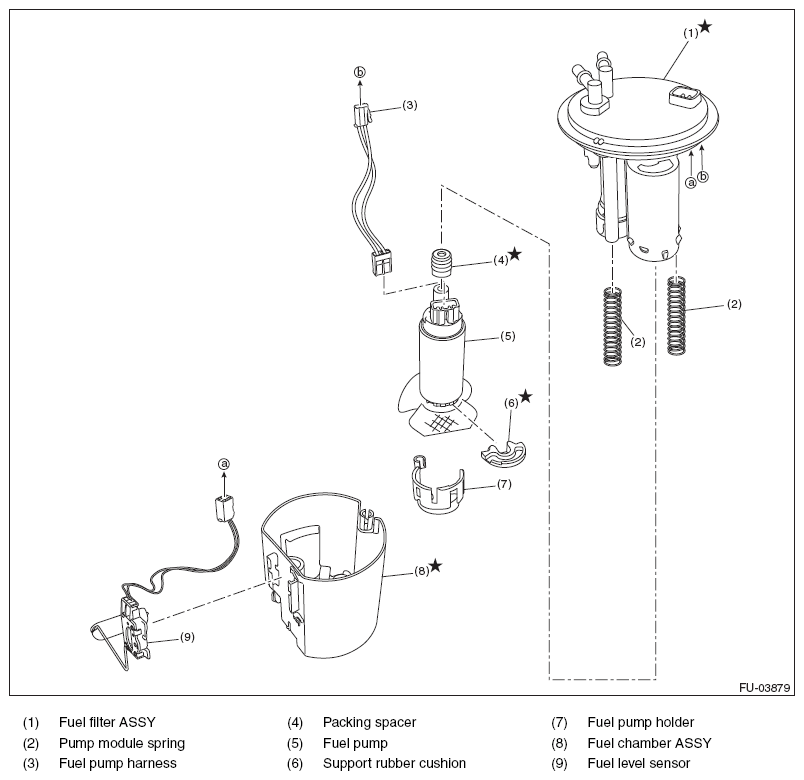

Fig 1: Identifying Fuel Pump And Related Components
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
