Mass Air Flow and Intake Air Temperature Sensor: Removal

Disconnect the ground cable from battery.
Disconnect the connector (A) from air flow and intake air temperature sensor.

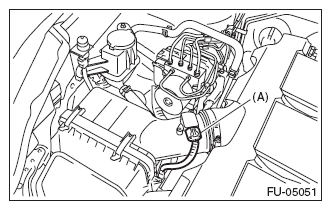

Fig 1: Identifying Intake Air Temperature Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the mass air flow and intake air temperature sensor.

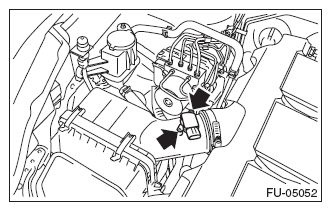

Fig 2: Locating Mass Air Flow And Intake Air Temperature Sensor Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
