Automatic Transmission - Mechanism & Function (5AT)
›
Cross-section
›
Cross-Section
Automatic Transmission - Mechanism & Function (5AT): Cross-section: Cross-Section

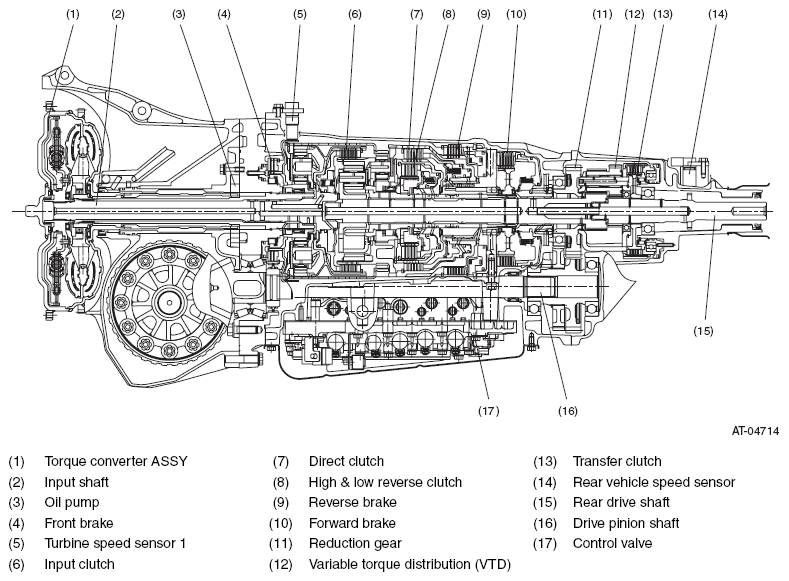

Fig 1: Cross-Sectional View Of Automatic Transmission
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
