Gear Train: Structure

The gear train consists of three sets of planetary gears, three sets of multi-plate clutches, three sets of multi-plate brakes and two sets of one-way clutches.

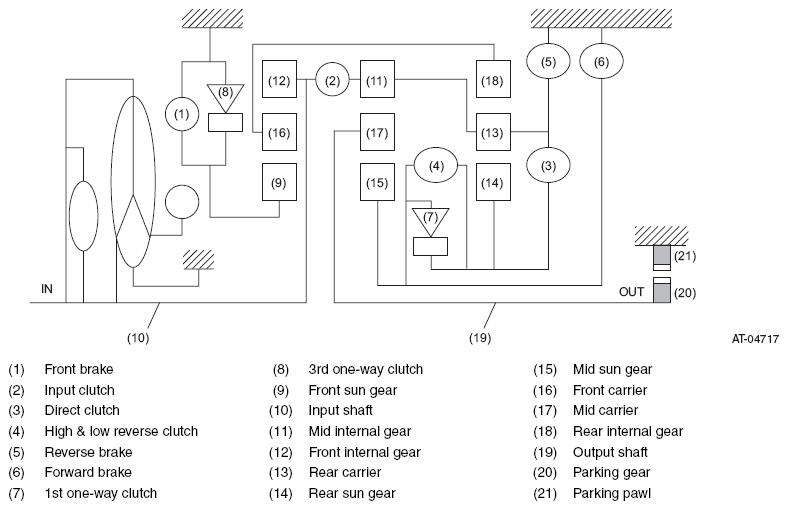

Fig 1: Power Flow Diagram
G08260277Courtesy of SUBARU OF AMERICA, INC.
