Automatic Transmission - Diagnostics: Electrical Component Location: Location: Sensor

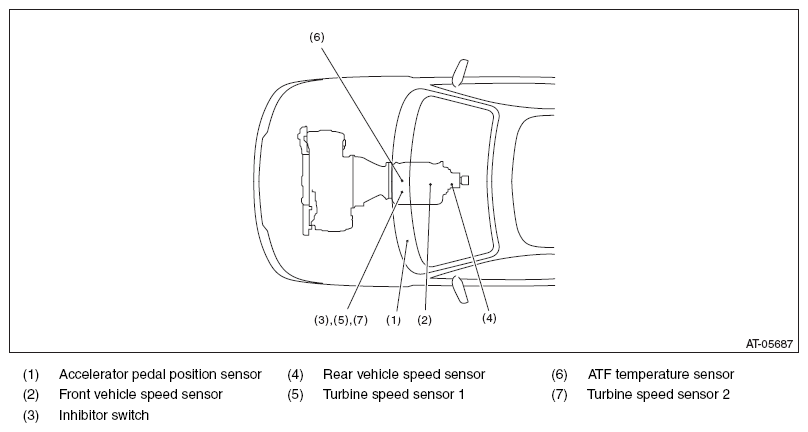

Fig 1: Sensor Components Location (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Sensor Components Location (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
