AT Shift Lock Control System: Wiring Diagram

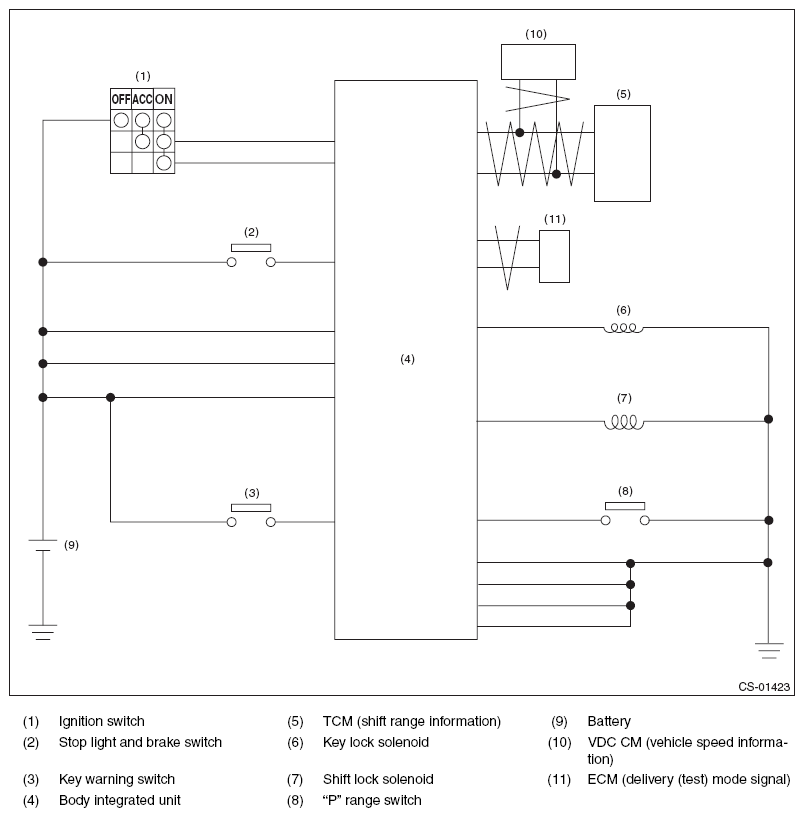

Fig 1: AT Shift Lock Control System - Wiring Diagram
G08550558Courtesy of SUBARU OF AMERICA, INC.
