Power Door Lock Control System
›
Parts Location
Parts Location

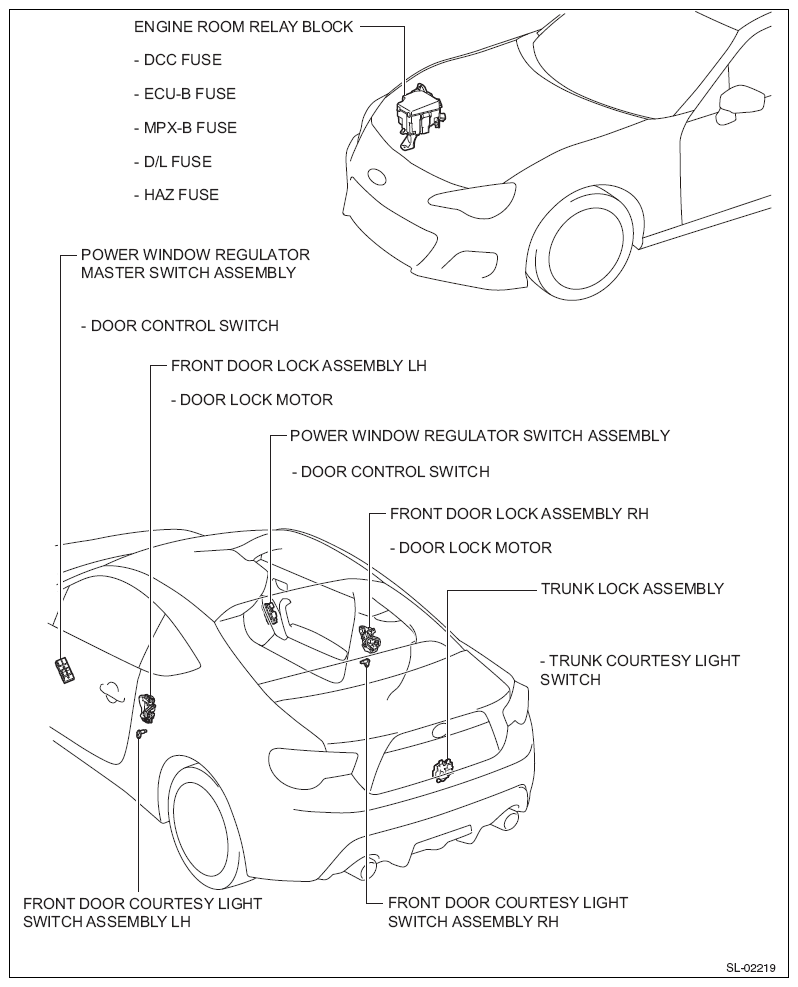

Fig 1: Power Door Lock Control System Parts Location (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

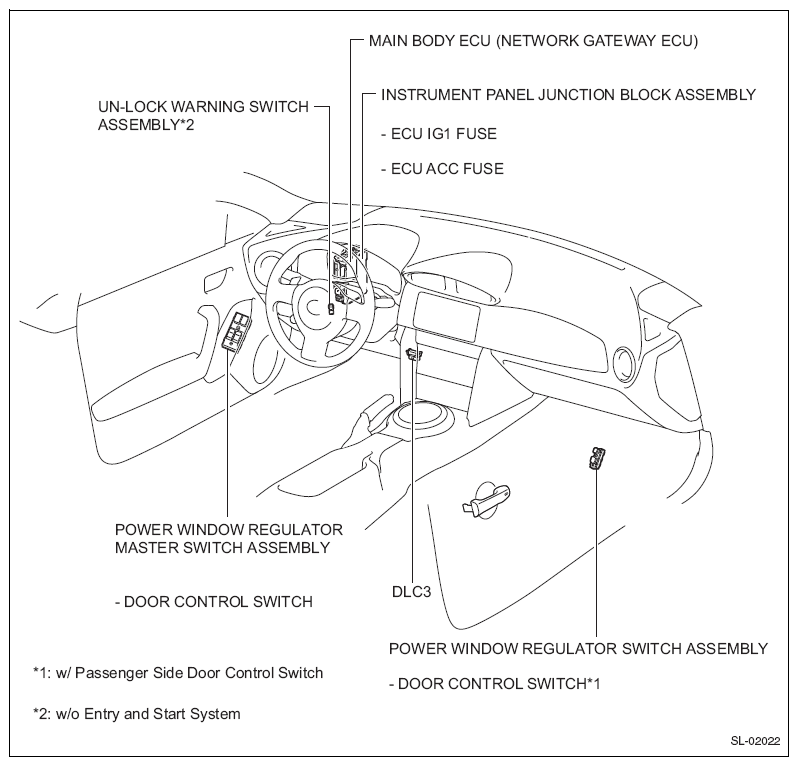

Fig 2: Power Door Lock Control System Parts Location (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
