Parts Location
Parts Location

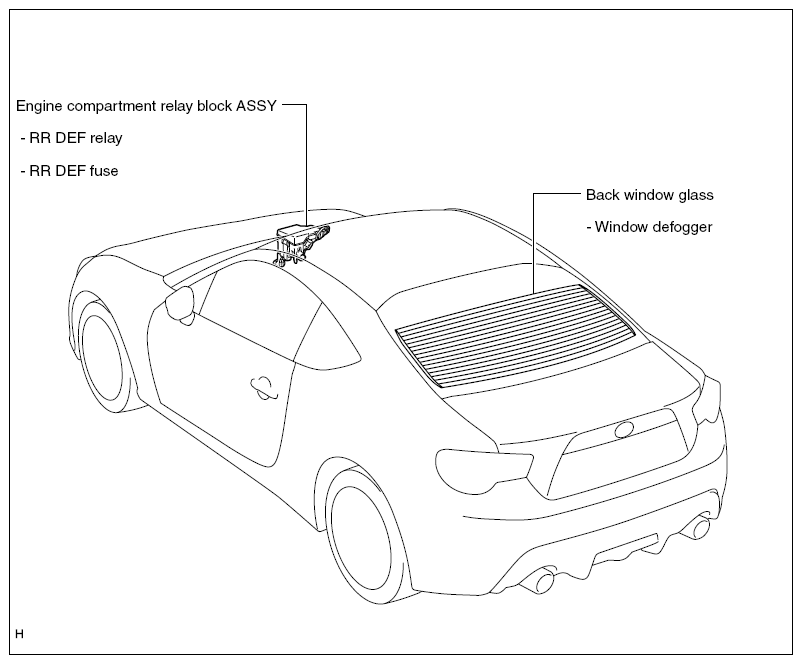

Fig 1: Window Defogger System Components Location (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

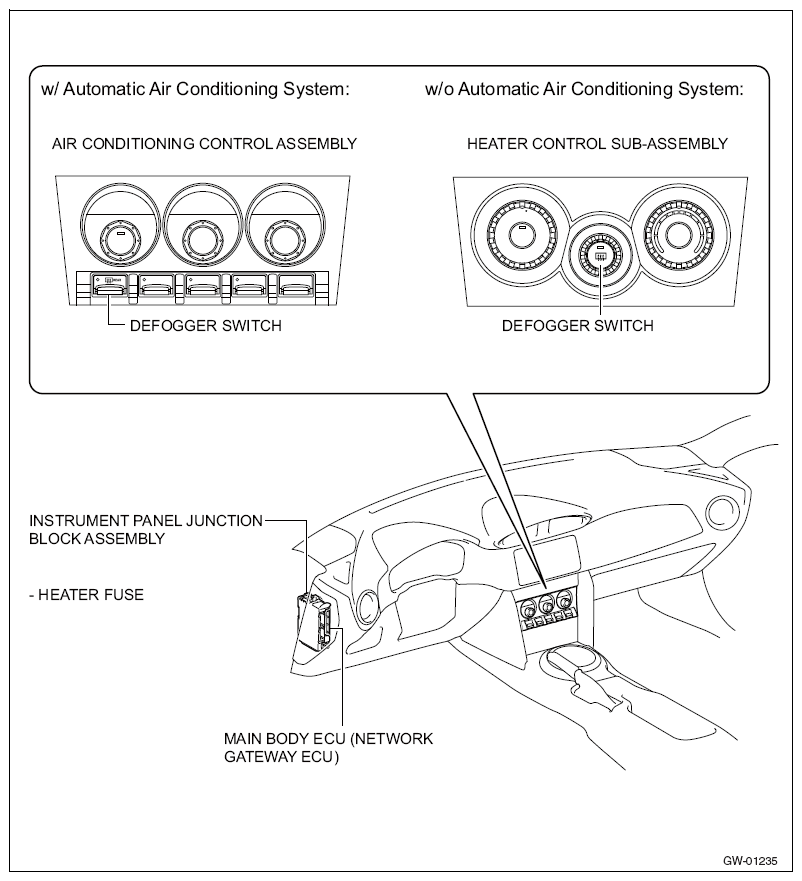

Fig 2: Window Defogger System Components Location (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
