BRZ Limited, Automatic Trans
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Vehicle Stability Control System
›
Brake Control Brake Actuator Assembly
›
Exploded View
Exploded View

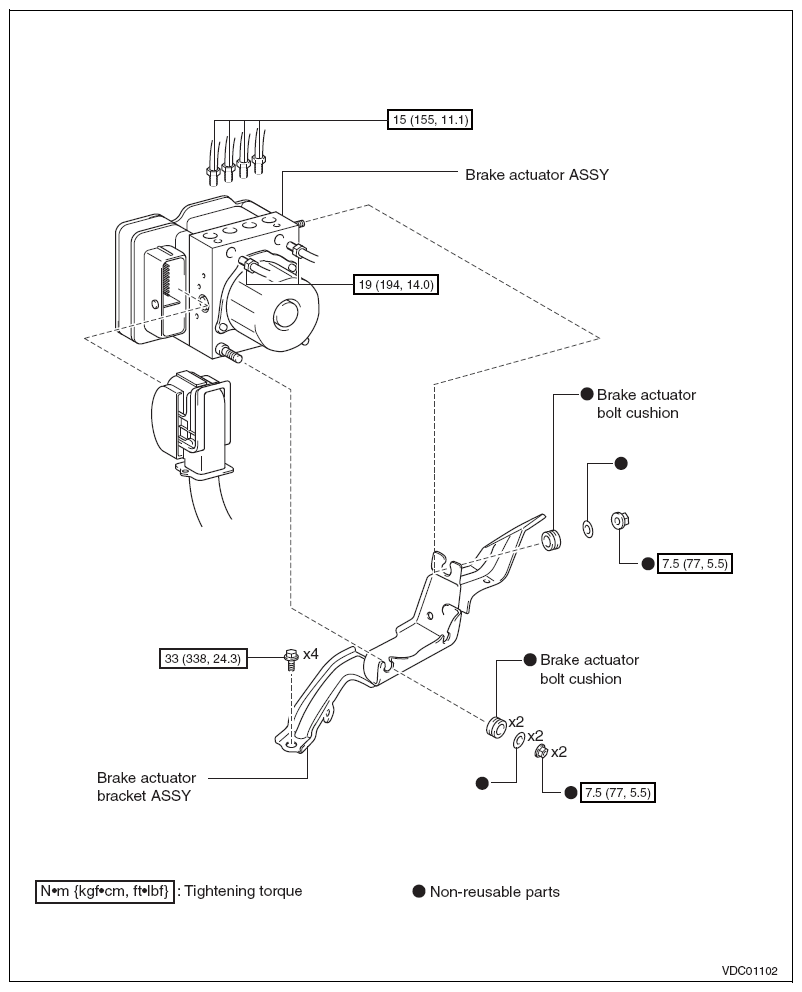

Fig 1: Exploded View Of Brake Actuator Assembly With Torque Specifications (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Exploded View Of Brake Actuator Assembly With Torque Specifications (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
