BRZ Limited, Automatic Trans
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Fuel Injection System
›
Fuel Pump Assembly (FA20)
›
Exploded View
Exploded View

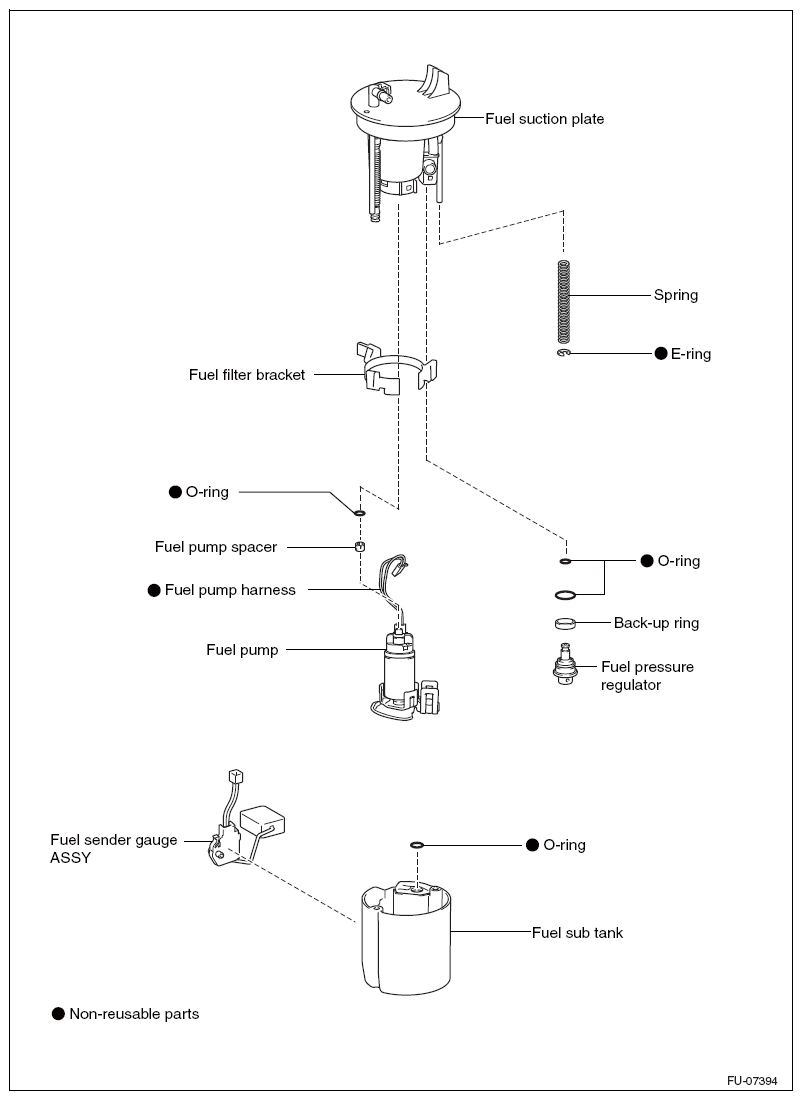

Fig 1: Exploded View Of Fuel Pump Assembly With Torque Specifications - FA20 (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

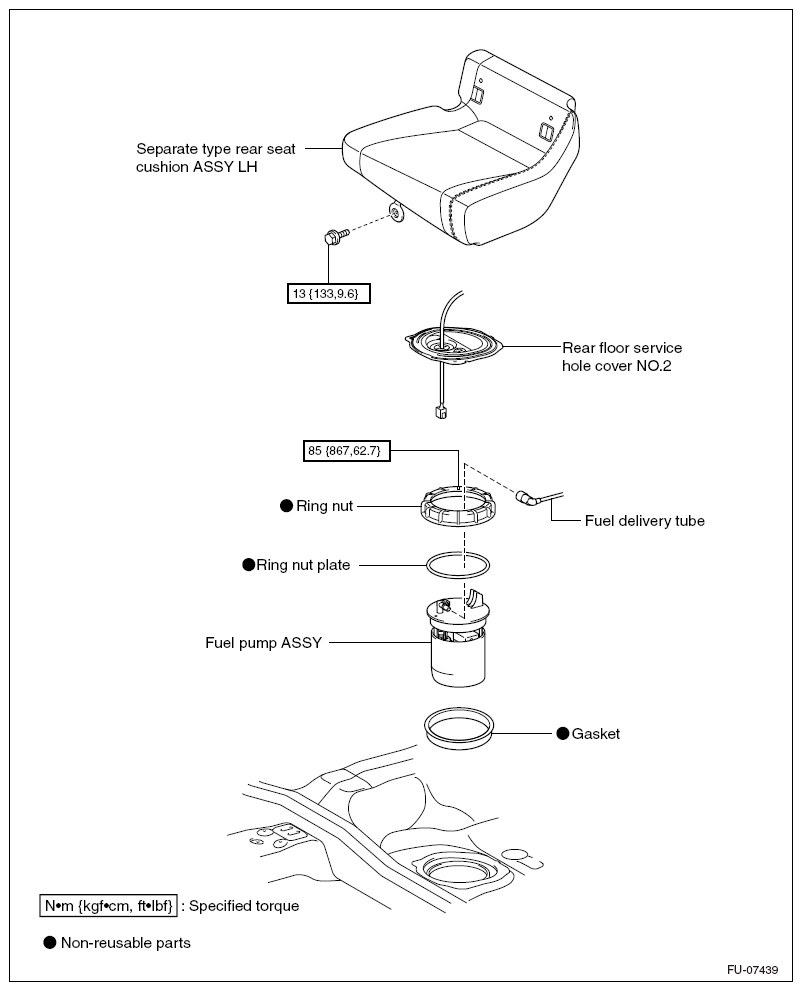

Fig 2: Exploded View Of Fuel Pump Assembly With Torque Specifications - FA20 (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
