BRZ Limited, Automatic Trans
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Fuel Injection System
›
Fuel System (FA20)
›
Parts Location
Parts Location

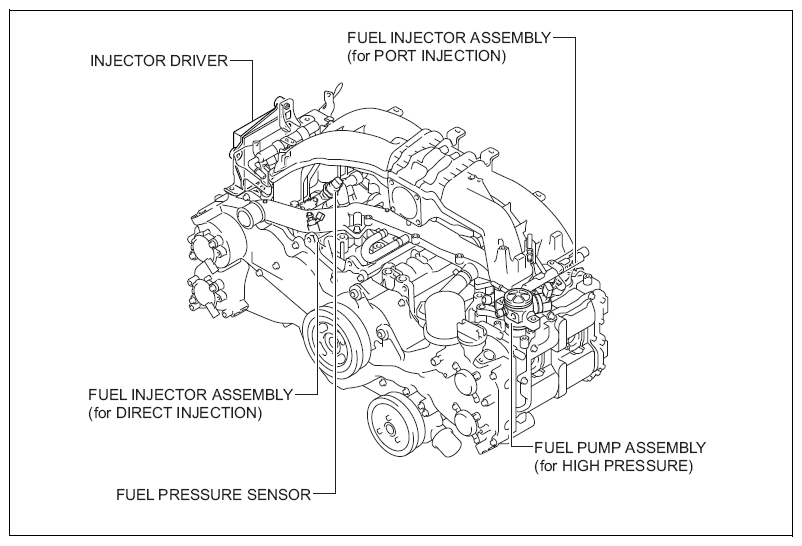

Fig 1: Fuel System Components Location (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

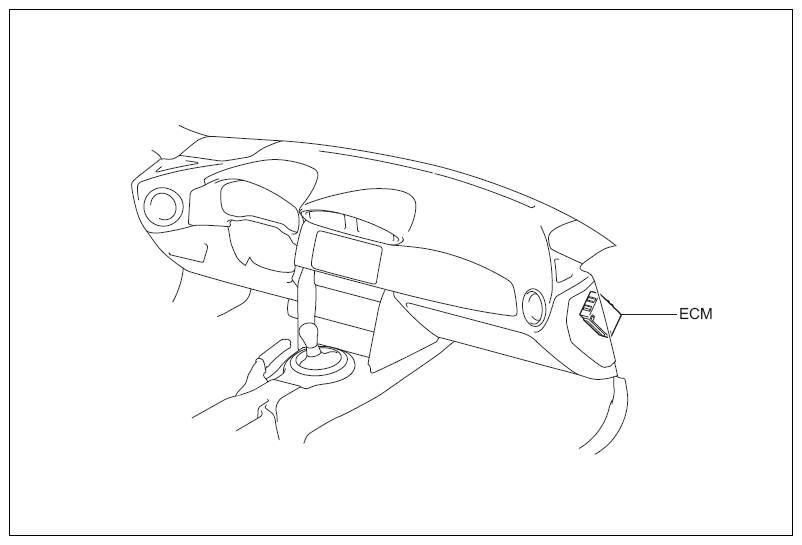

Fig 2: Fuel System Components Location (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Fig 3: Fuel System Components Location (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
