Injector Assembly (FA20/Port Fuel Injection)
›
Exploded View
Exploded View

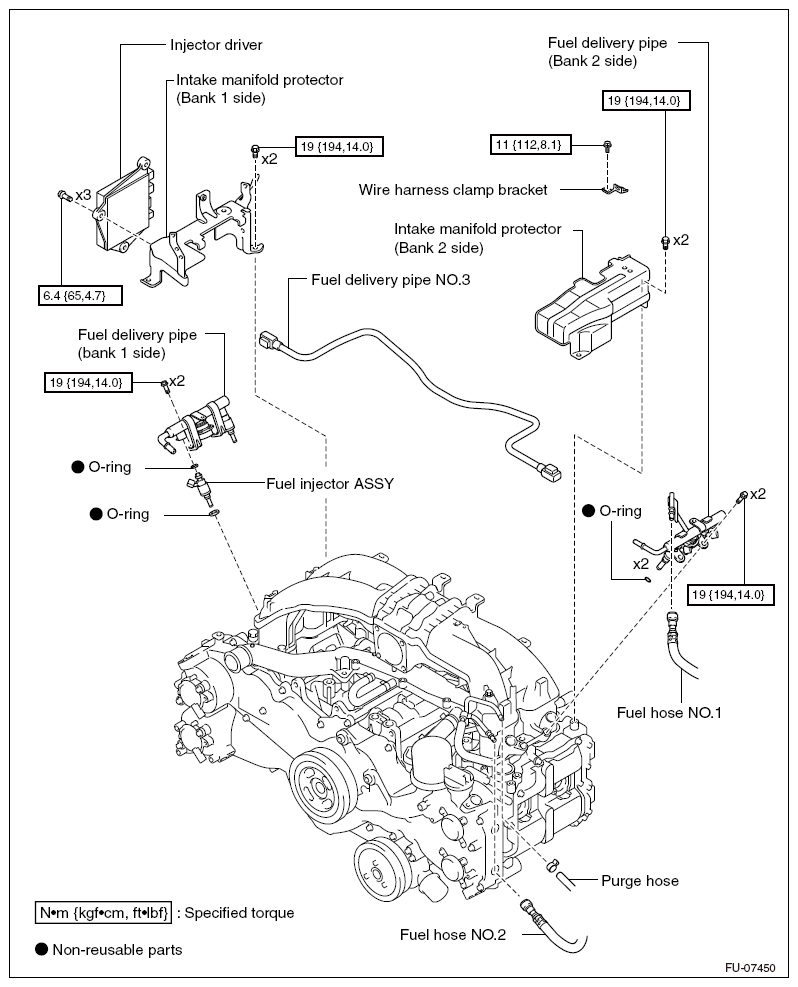

Fig 1: Exploded View Of Injector Assembly (FA20/Port Fuel Injection)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
