Exploded View
Exploded View

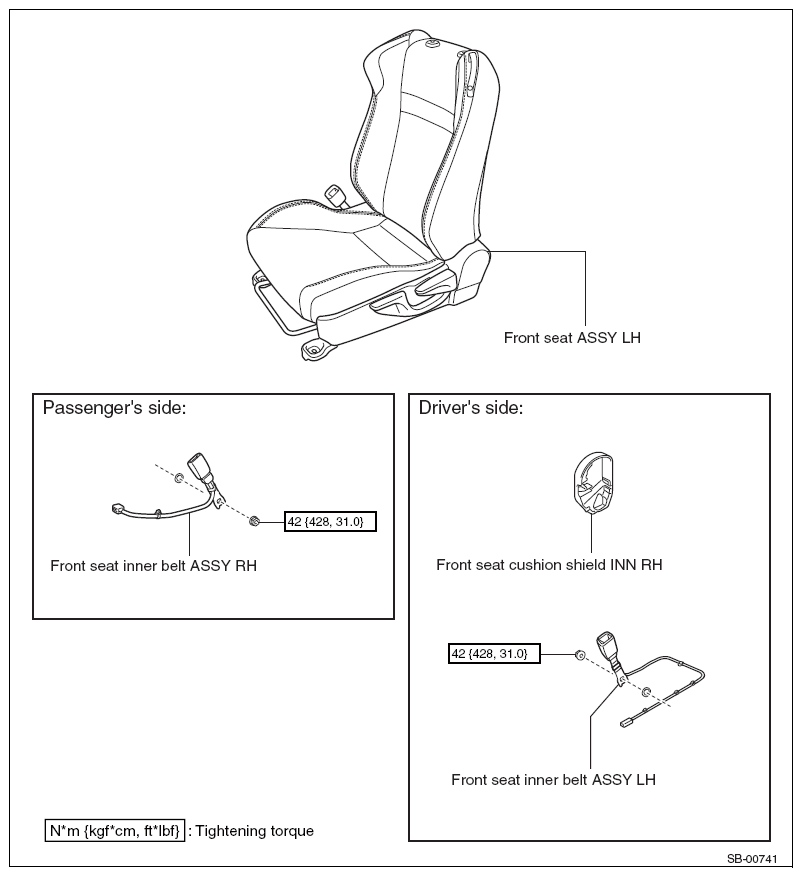

Fig 1: Exploded View Of Front Seat Inner Belt assembly
Courtesy of SUBARU OF AMERICA, INC.
NOTE:
Vehicles with steering wheels on the left are mirrored.
Courtesy of SUBARU OF AMERICA, INC.
