Subaru
›
2014
›
BRZ Limited, Automatic Trans
›
Repair and Diagnosis
›
Restraints
›
Restraints Control Systems
›
Seat Belt System
›
Rear Seat Outer Belt Assembly
›
Exploded View
Exploded View

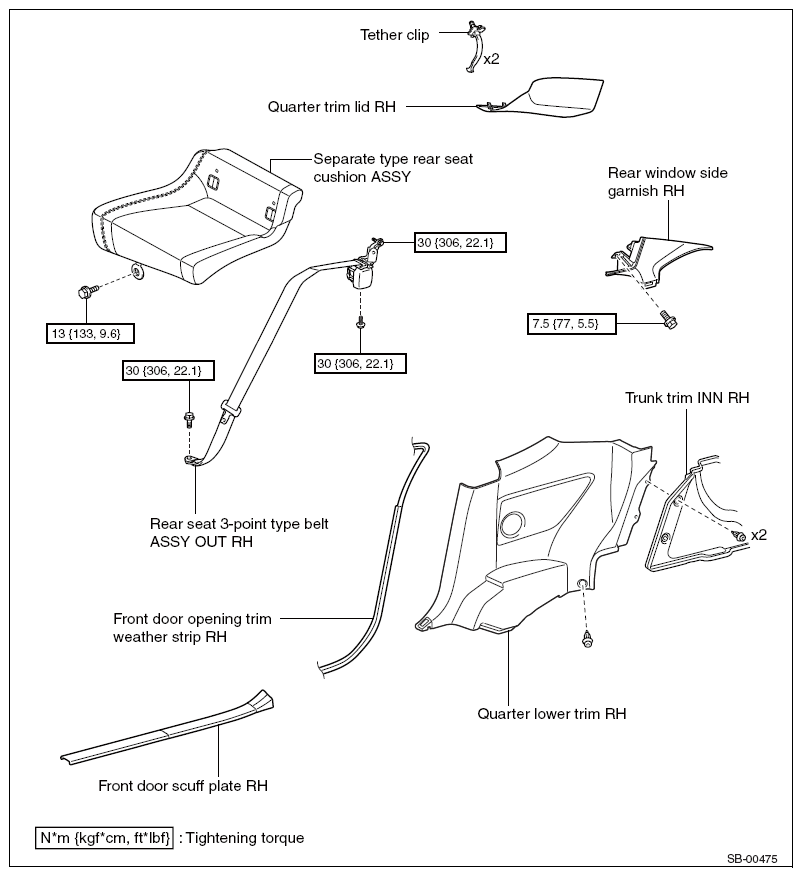

Fig 1: Exploded View Of Rear Seat Outer Belt assembly
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
