Circuit Figure
Circuit Figure

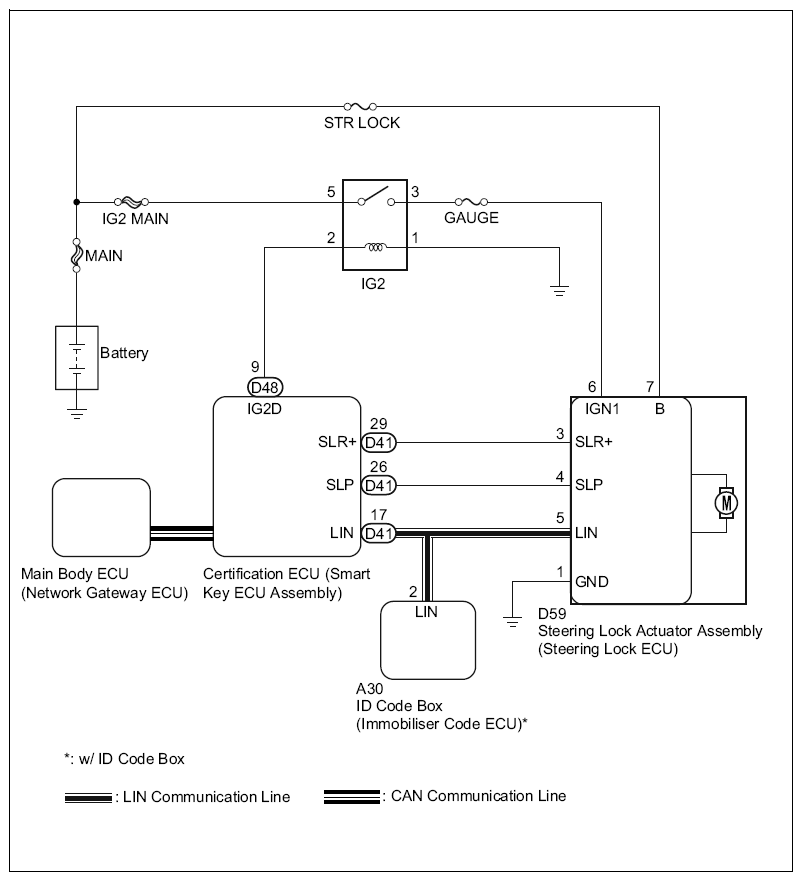

Fig 1: Steering Lock System - Circuit Diagram
Courtesy of SUBARU OF AMERICA, INC.
