Select Lever: Removal

Removal of console box ASSY
(Refer to REMOVAL )
Removal of under cover front AL (refer to REMOVAL )
Removal of under cover COMPL T/M (refer to REMOVAL )
Disconnection of floor shift gear shifting rod SUB-ASSY No. 1
1. While pressing the shift lock release button, set the select lever to N position.

  Fig 1: Locating Shift Lock Release Button
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the nut and disconnect the floor shift gear shifting rod SUB-ASSY No. 1 from the connecting rod swivel.

  Fig 2: Locating Floor Shift Gear Shifting Rod Sub-Assy No. 1 To Connecting Rod Swivel Nut
  Courtesy of SUBARU OF AMERICA, INC.
Removal of select lever ASSY
1. Disconnect the connector.

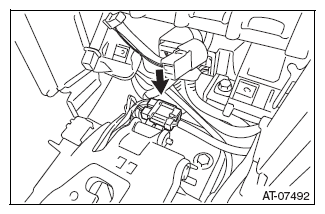

  Fig 3: Locating Select Lever Assy Connector
  Courtesy of SUBARU OF AMERICA, INC.
2. Release the wiring harness clamp, and disconnect the wiring harness.

  Fig 4: Identifying Wiring Harness Clamp
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove 4 bolts to remove the select lever ASSY.

  Fig 5: Locating Select Lever Assy Bolts
  Courtesy of SUBARU OF AMERICA, INC.
