Glass & Power Window System
›
Window Defogger System
›
Circuit Figure
Circuit Figure

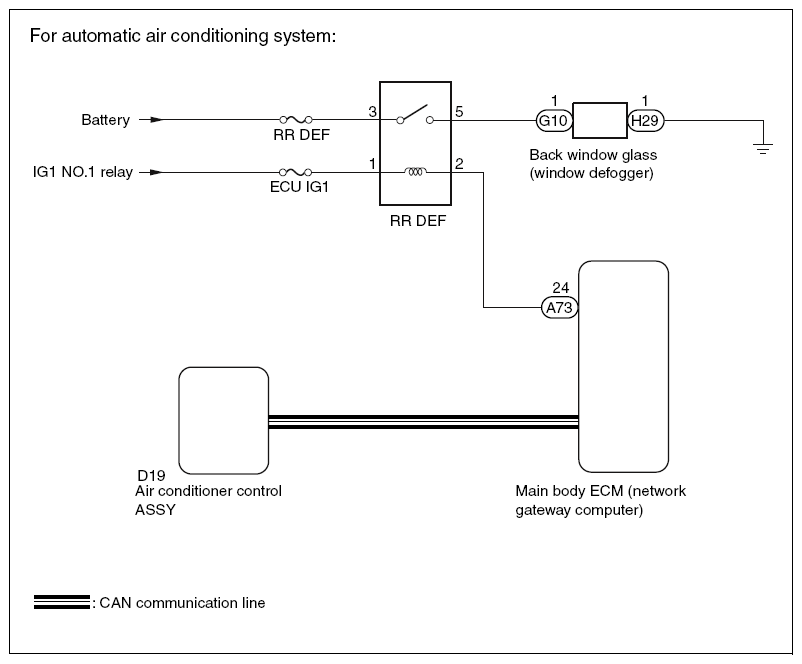

Fig 1: Window Defogger System - Circuit Diagram (For Automatic Air Conditioning System)
Courtesy of SUBARU OF AMERICA, INC.

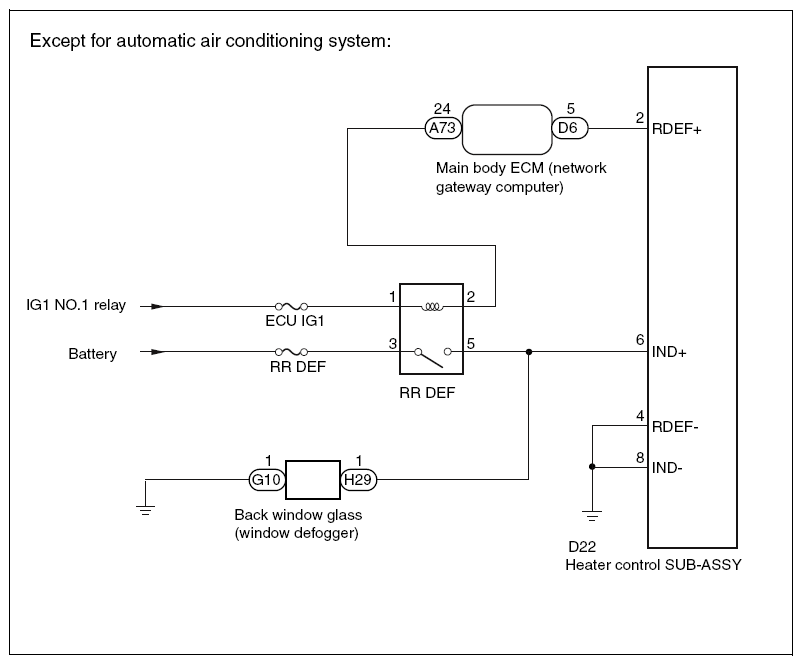

Fig 2: Window Defogger System - Circuit Diagram (Except For Automatic Air Conditioning System)
Courtesy of SUBARU OF AMERICA, INC.
