Charging System
›
Charging System (FA20)
›
Circuit Figure
Circuit Figure

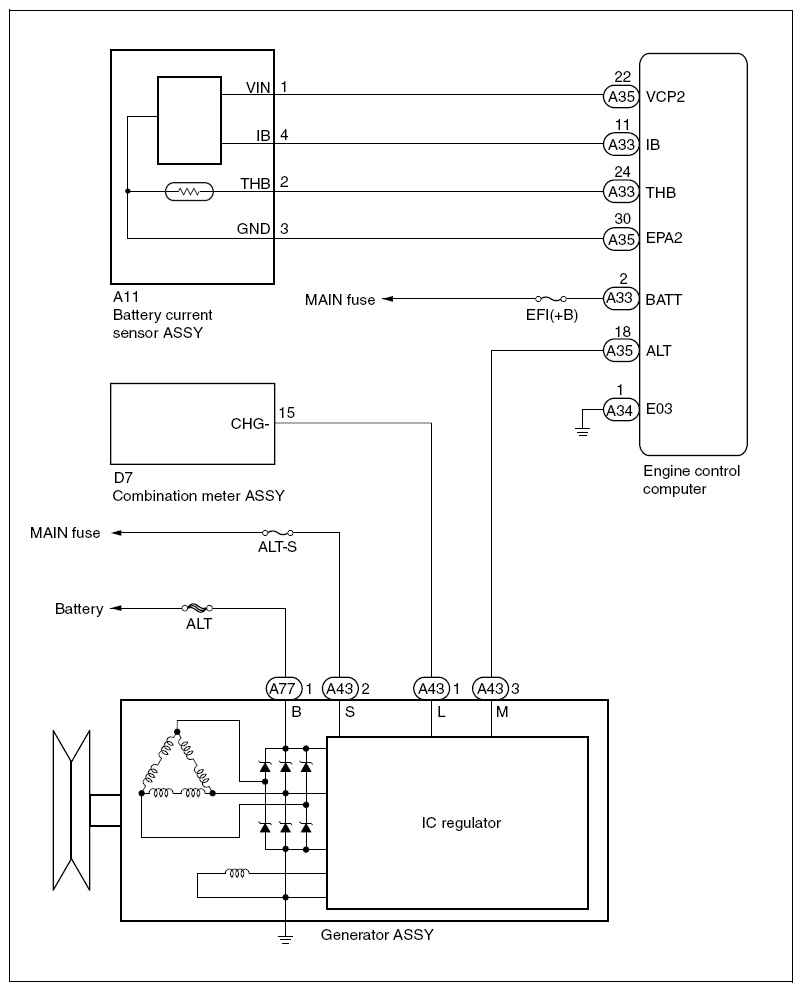

Fig 1: Charging System - Circuit Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
