Exploded View
Exploded View

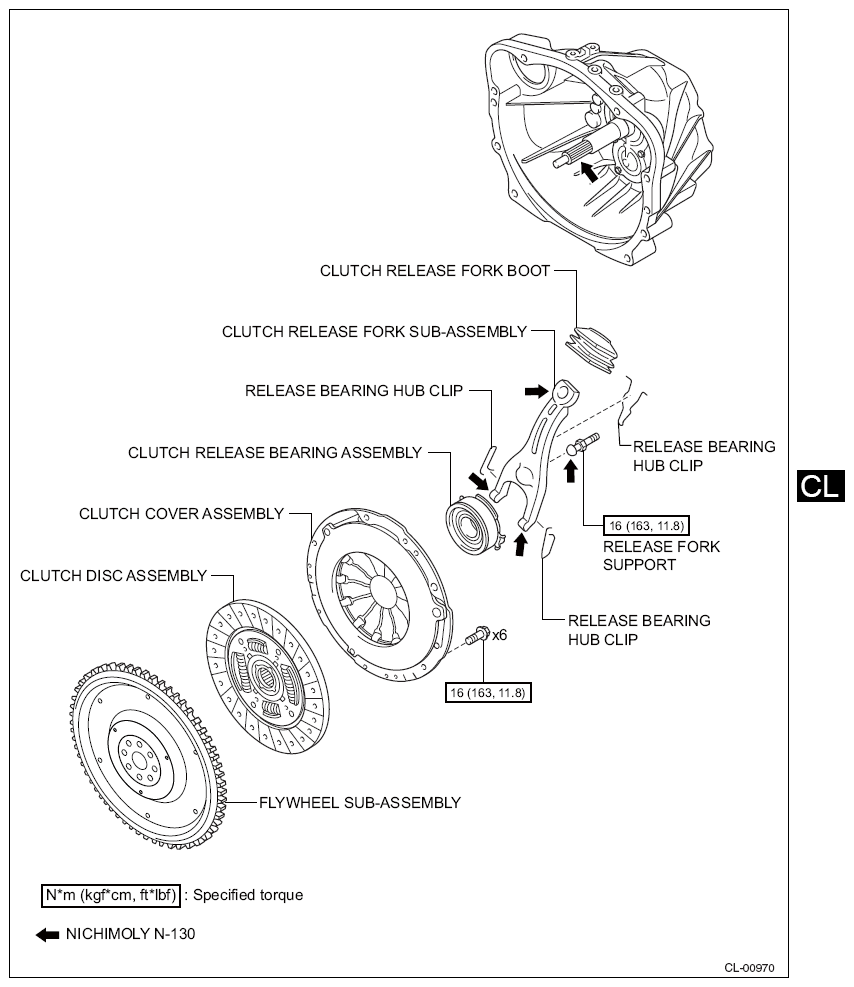

Fig 1: Exploded View Of Clutch With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
