Exploded View

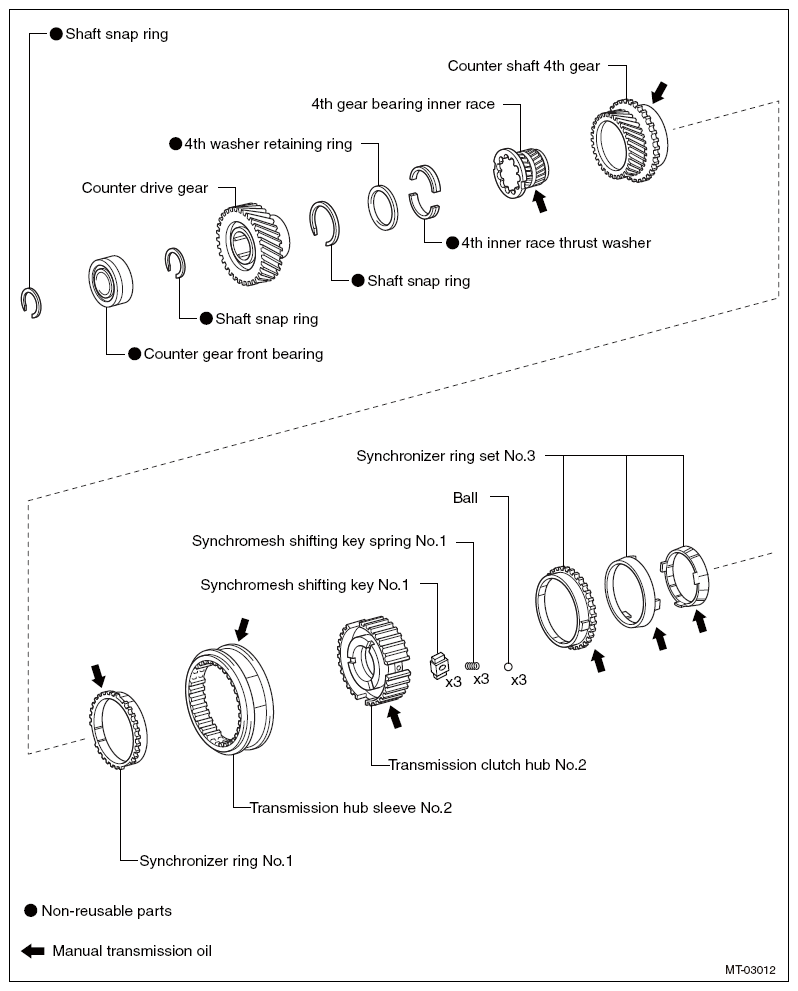

Fig 1: Exploded View Of Counter Gear Assembly (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Be sure to use the recommended product or the substitute product for manual transmission oil. (Refer to MANUAL TRANSMISSION OIL )
