Components With Torque Specifications

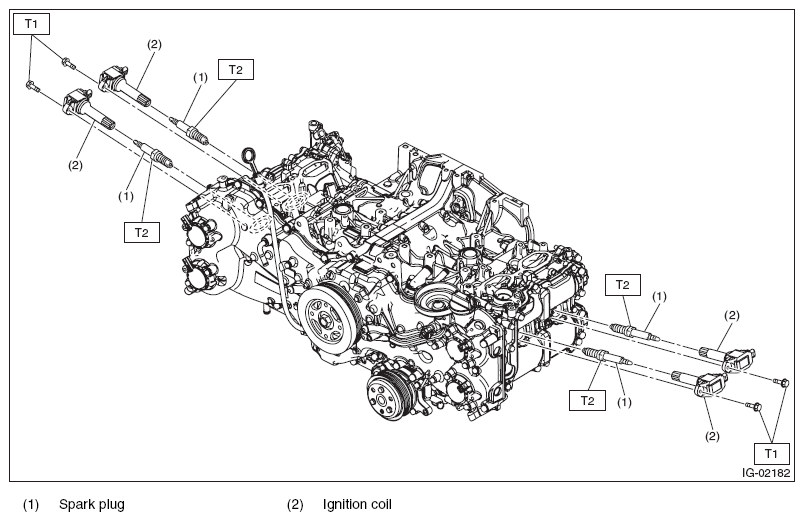

Fig 1: Identifying Spark Plug And Ignition Coil With Mounting Bolts

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8.5 (0.9, 6.3)

T2: 17.5 (1.8, 12.9)
