Engine Wiring Harness: Removal

Release the fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
Disconnect the ground cable from battery.
Open the fuel filler lid and remove the fuel filler cap.
Remove the intake manifold. < Ref. to REMOVAL , Intake Manifold. >
Disconnect the connector from the engine.

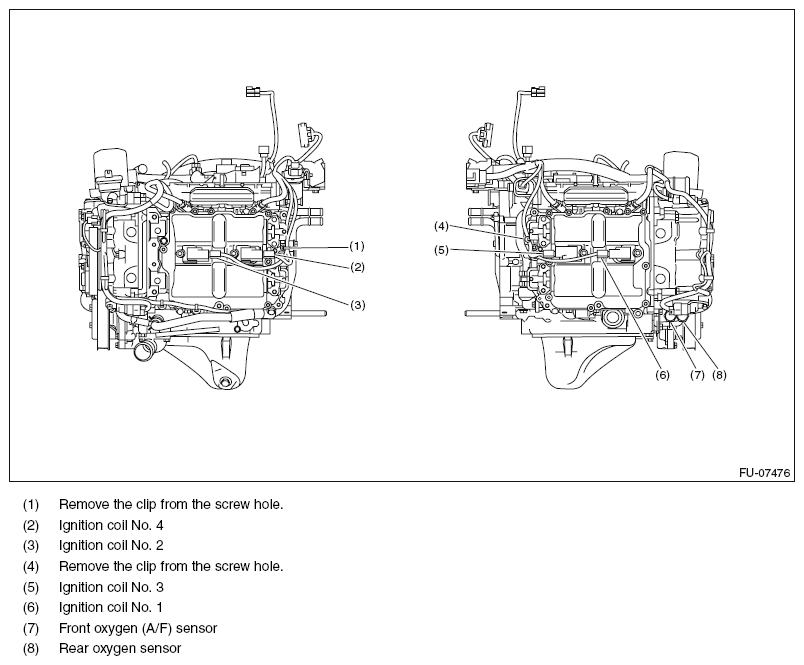

- Structural diagram 1

  Fig 1: Identifying Engine Wiring Harness Diagram 1
  Courtesy of SUBARU OF AMERICA, INC.

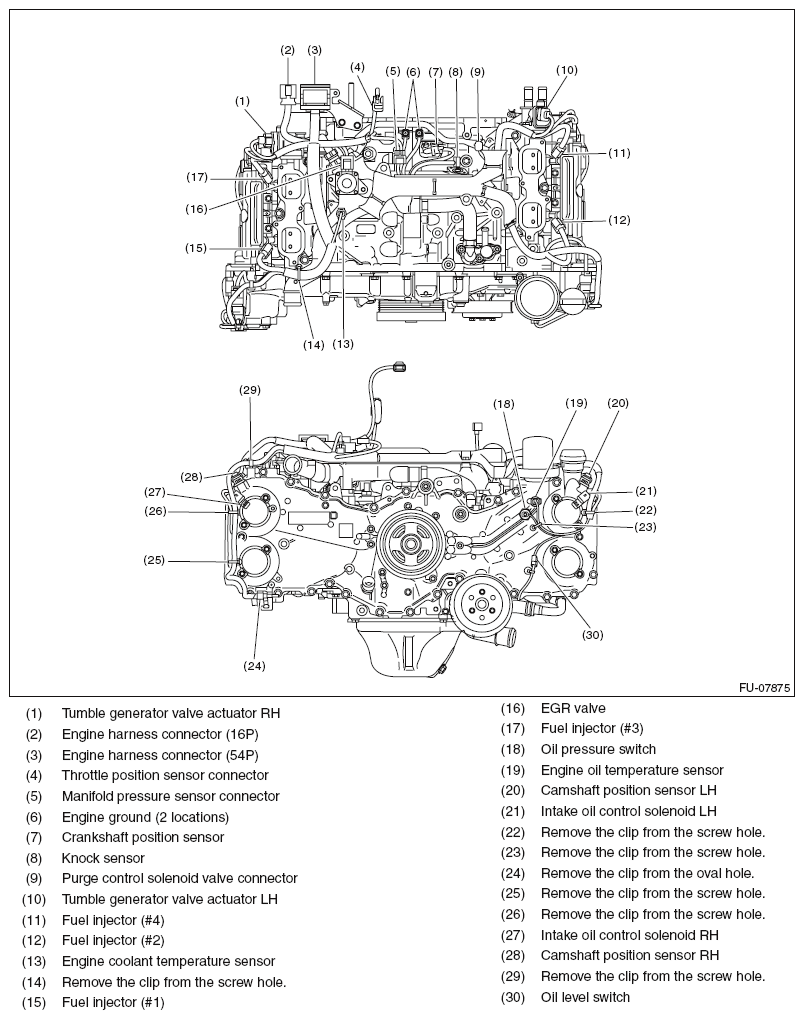

- Structural diagram 2

  Fig 2: Identifying Engine Wiring Harness Diagram 2
  Courtesy of SUBARU OF AMERICA, INC.
Remove the engine wiring harness.

Fig 3: Locating Engine Wiring Harness Cover Bolts
Courtesy of SUBARU OF AMERICA, INC.
