IG Relay: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the glove box. < Ref. to REMOVAL , Glove Box. >
  3. Remove the IG relay from the relay block.

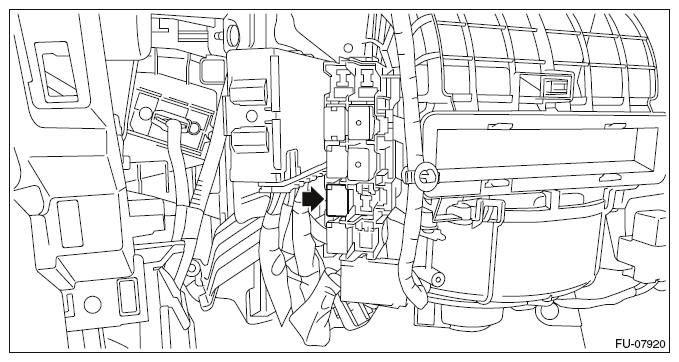

    Fig 1: Locating IG Relay
    G09475591Courtesy of SUBARU OF AMERICA, INC.
