5MT Gear Shift Lever

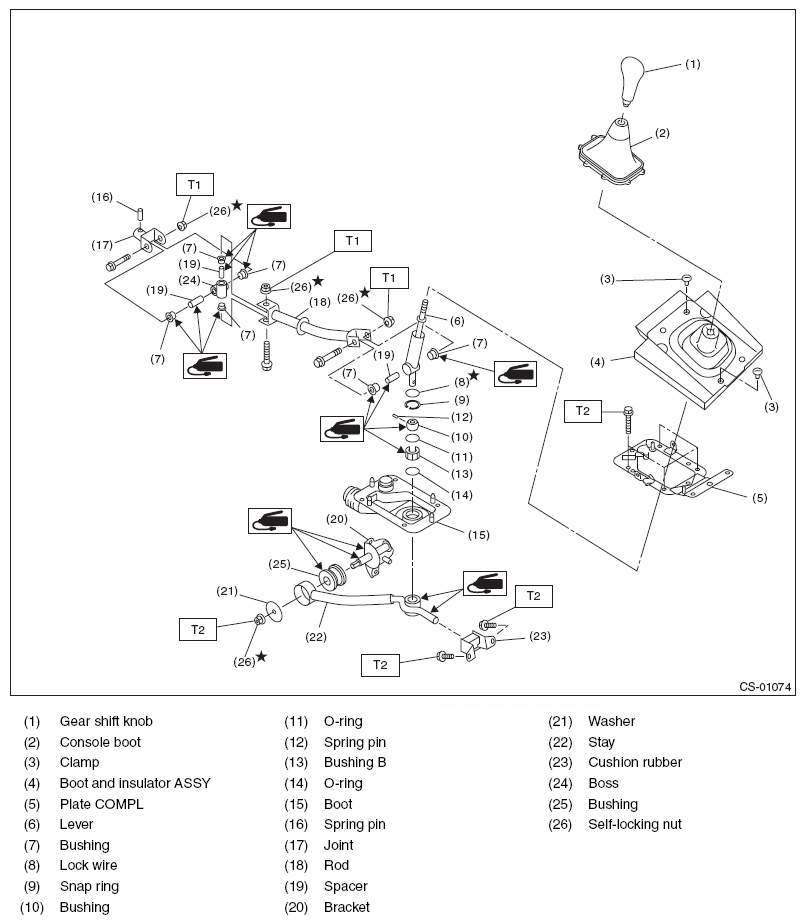

Fig 1: Identifying Control System Components (5MT Gear Shift Lever)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 12 (1.2, 8.9)

T2: 18 (1.8, 13.3)
