Engine Controls (Diagnostics) (H4DOTC): Electrical Component Location: Location: Sensor

Models without SI-DRIVE

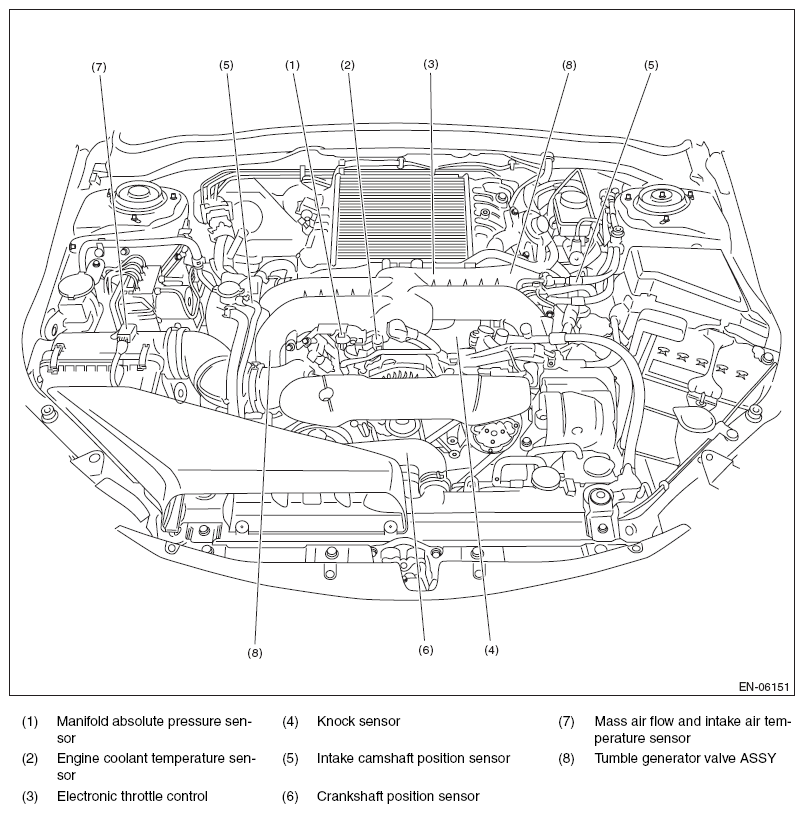

Fig 1: Identifying Sensor (Models Without SI-DRIVE)
Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Identifying Sensor Locations
Courtesy of SUBARU OF AMERICA, INC.
Models with SI-DRIVE

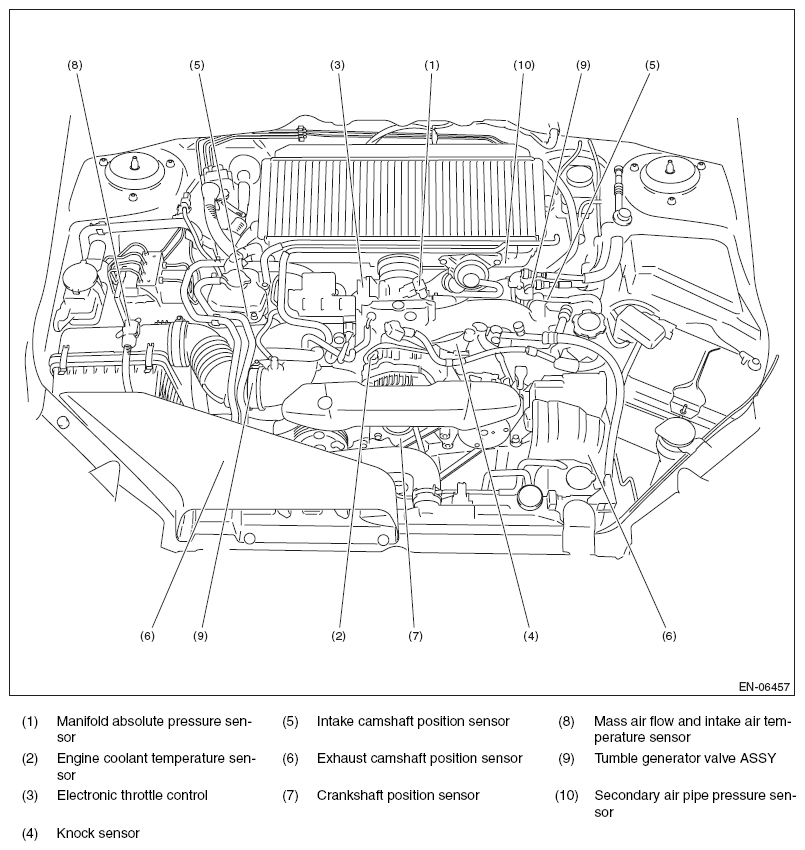

Fig 3: Identifying Sensor (Models With SI-DRIVE)
Courtesy of SUBARU OF AMERICA, INC.

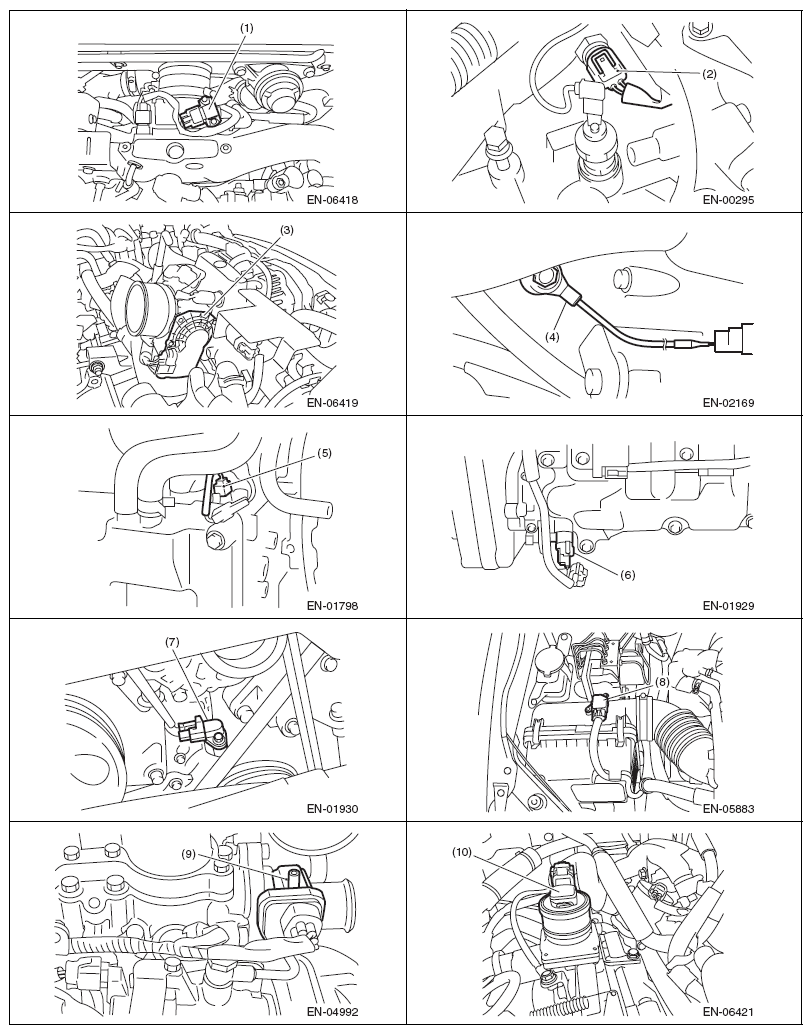

Fig 4: Identifying Sensor Locations
Courtesy of SUBARU OF AMERICA, INC.

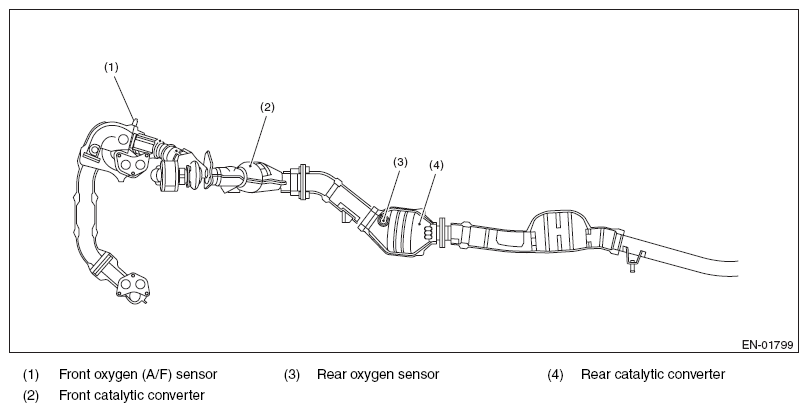

Fig 5: Identifying Front And Rear Oxygen Sensors And Catalytic Converters (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

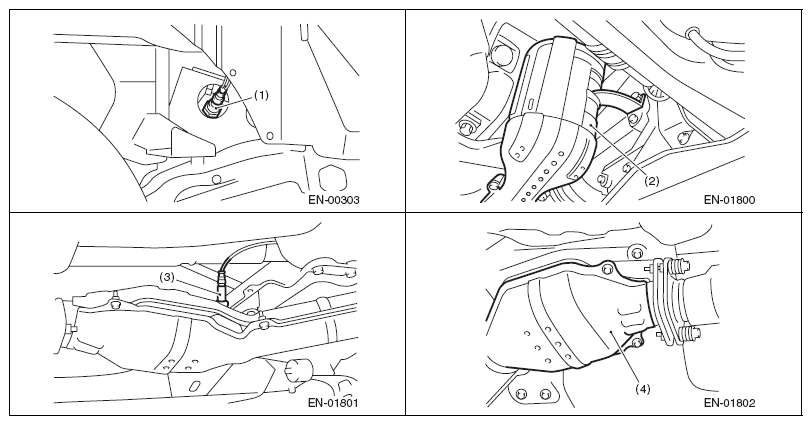

Fig 6: Identifying Front And Rear Oxygen Sensors And Catalytic Converters (2 of 2)
Courtesy of SUBARU OF AMERICA, INC.

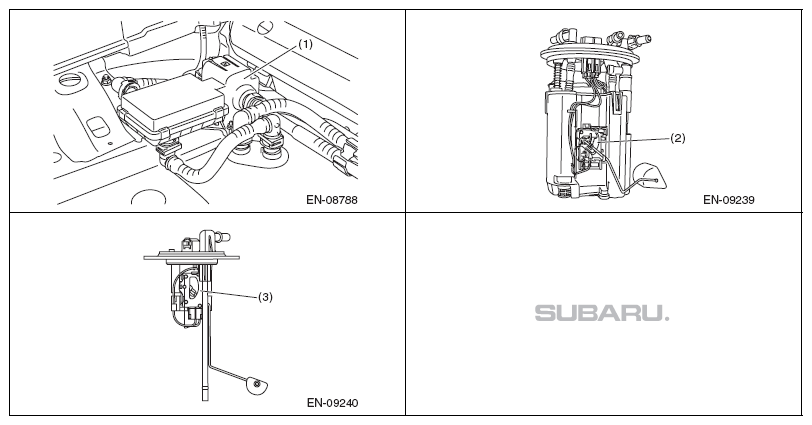

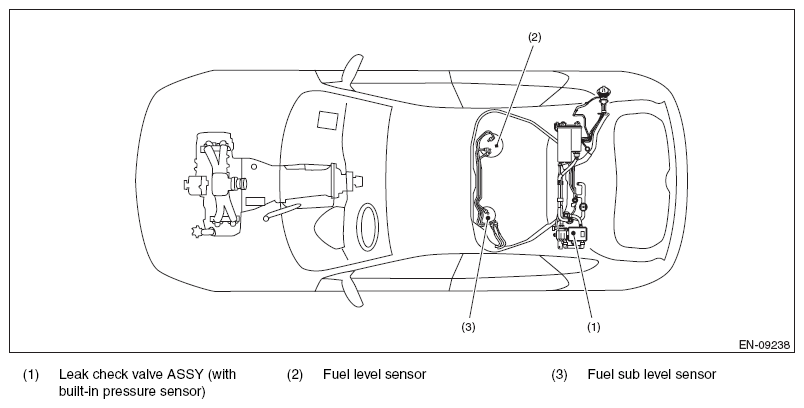

Fig 7: Identifying Leak Check Valve Assembly, Fuel Level Sensor And Fuel Sub Level Sensor (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

Fig 8: Identifying Leak Check Valve Assembly, Fuel Level Sensor And Fuel Sub Level Sensor (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
