Operating Cylinder

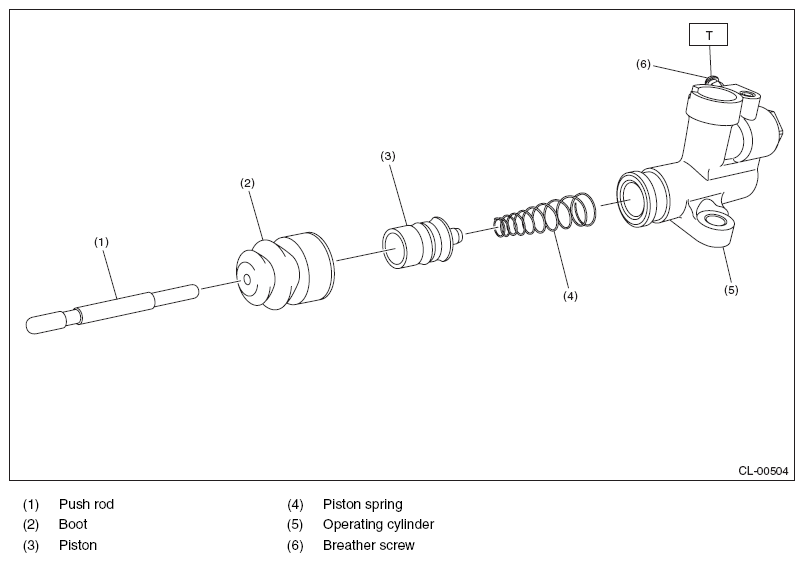

Fig 1: Operating Cylinder And Related Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.8 (0.8, 5.8)
