Operating Cylinder: Installation

Install in the reverse order of removal.
NOTE:
- Use a new gasket.
- Before installing the operating cylinder, apply grease to the contact point of the release lever and operating cylinder.
Grease

NICHIMOLY N-130 or equivalent
- Be sure to install the clutch hose with the mark side facing upward.
- Be careful not to twist the clutch hose during installation.
- STI model
  Tightening torque:

  T1: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

  T2: 41 N.m (4.2 kgf-m, 30.2 ft-lb)

  Fig 1: Operating Cylinder Mounting Bolts With Torque Specifications (STI Model)
  Courtesy of SUBARU OF AMERICA, INC.

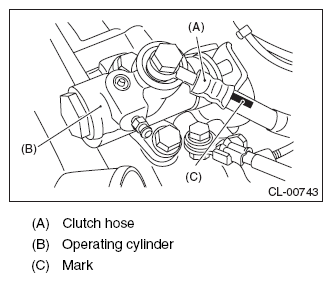

  Fig 2: Identifying Operating Cylinder And Clutch Hose With Installation Mark (STI Model)
  Courtesy of SUBARU OF AMERICA, INC.
- Except for STI model
  Tightening torque:

  T1: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

  T2: 37 N.m (3.8 kgf-m, 27.3 ft-lb)

  Fig 3: Operating Cylinder Mounting Bolts With Torque Specifications (Except For STI Model)
  Courtesy of SUBARU OF AMERICA, INC.

  Fig 4: Identifying Operating Cylinder And Clutch Hose With Installation Mark (Except For STI Model)
  Courtesy of SUBARU OF AMERICA, INC.
After bleeding air from the operating cylinder, ensure that the clutch operates properly. < Refer to CLUTCH FLUID AIR BLEEDING . >
