VDC Control Module & Hydraulic Control Unit (VDCCM & H/U)
WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

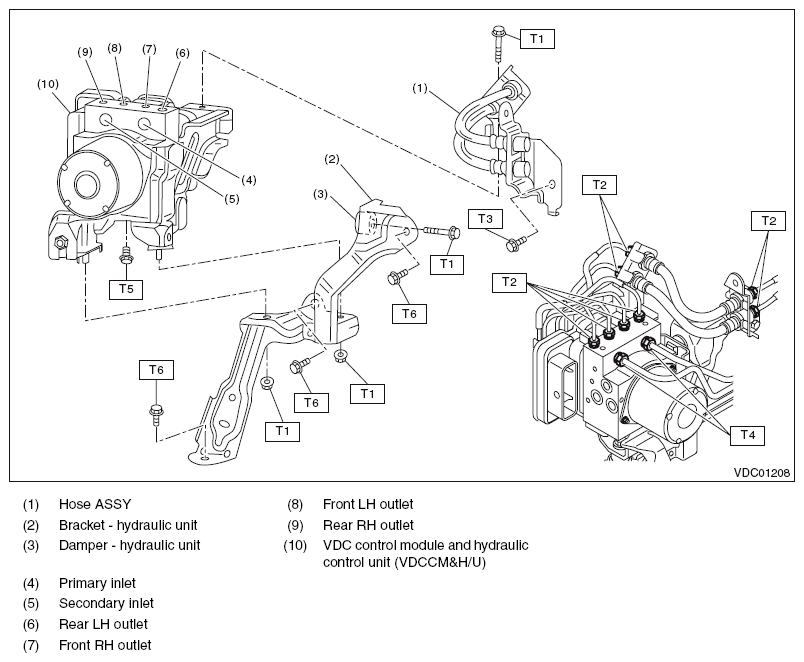

- Models without EyeSight
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 7.5 (0.76, 5.5)
T2: 15 (1.53, 11.1)
T3: 19 (1.94, 14.0)
T4: 33 (3.36, 24.3)
T5: < Ref. to REPLACEMENT , VDC Control Module and Hydraulic Control Unit (VDCCM & H/U). >

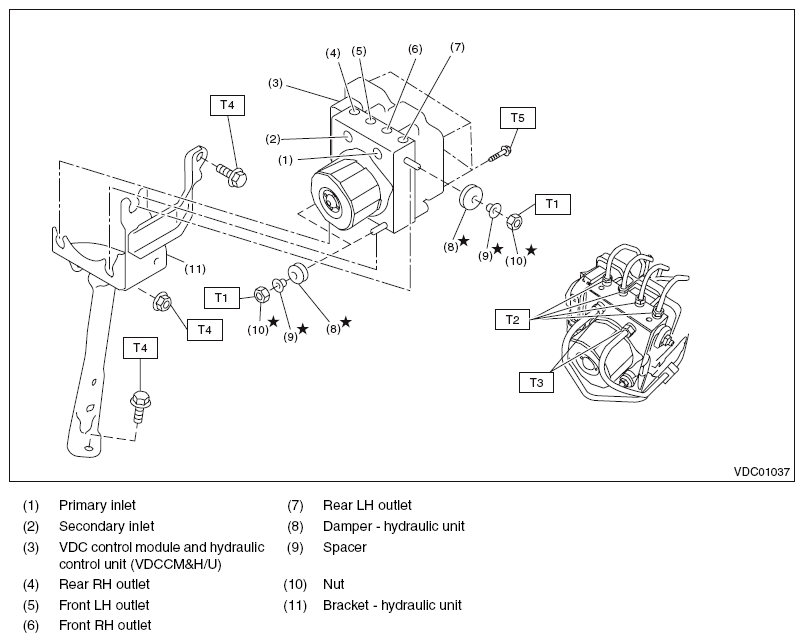

- Models with EyeSight
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 7.5 (0.76, 5.5)
T2: 15 (1.53, 11.1)
T3: 18 (1.84, 13.3)
T4: 19 (1.94, 14.0)
T5: 27 (2.75, 19.9)
T6: 33 (3.36, 24.3)
