IG Relay2 (Push Button Start): Removal

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Remove the cover assembly - instrument panel LWR driver and the knee airbag module. < Ref. to REMOVAL , Knee Airbag Module. >
Release the lock and remove the fuse holder.

Fig 1: Locating IG Relay 2 (Push Button Start) Fuse Holder
Courtesy of SUBARU OF AMERICA, INC.
Remove the relay & fuse box.
1. Disconnect the connector.
2. Remove the bolts and nuts, and remove the relay & fuse box.

  Fig 2: Locating Relay & Fuse Box Bolts And Nuts
  Courtesy of SUBARU OF AMERICA, INC.

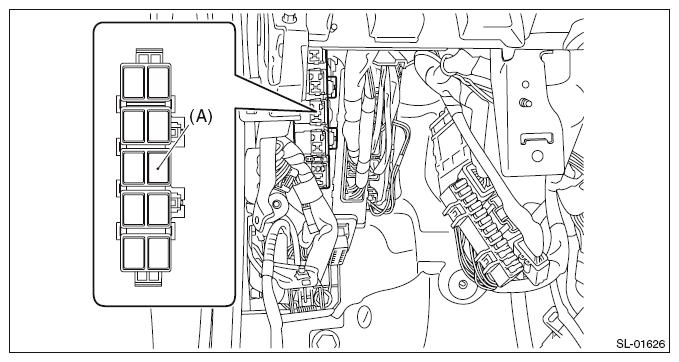

Remove IG relay 2 (push button start) (A) from the relay holder.

Fig 3: Locating IG Relay 2 (Push Button Start) Fuse Holder
Courtesy of SUBARU OF AMERICA, INC.
