Rearview Camera System: Removal

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery.
Remove the trim panel - rear gate and the garnish assembly - rear gate. < Ref. to REMOVAL , Rear Gate Garnish. >
Remove the rearview camera assembly.
CAUTION: Do not drop or apply any impact to the rearview camera because it is a precision equipment.
1. Disconnect the rearview camera connector.
2. Disconnect the claws and then remove the rearview camera assembly.

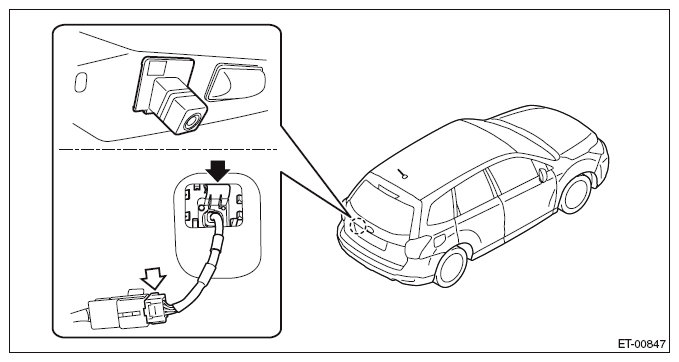

  Fig 1: Locating Rearview Camera Assembly Connector
  Courtesy of SUBARU OF AMERICA, INC.
