Power Rear Gate Control Module: Removal

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When the power rear gate control module (PRG CM) is replaced, the memory height function is initialized. Be sure to measure the power rear gate height before starting the operation and set the memory height function again after the operation.
  1. Disconnect the ground cable from battery.
  2. Remove the trim panel - rear apron. < Ref. to REMOVAL , Rear Quarter Trim. >
  3. Remove the power rear gate control module (PRG CM).
    1. Disconnect the connector.
    2. Remove the bolts and harness clips and remove the power rear gate control module (PRG CM).

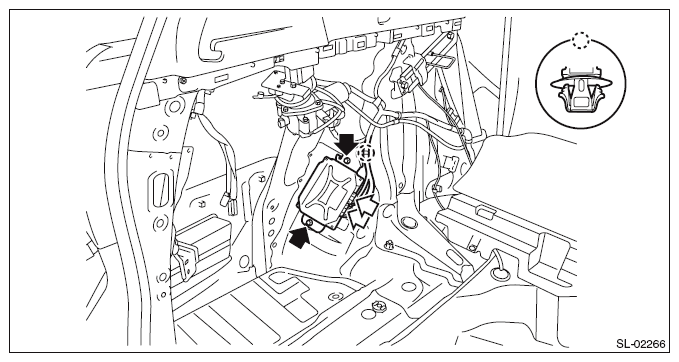

      Fig 1: Removing Power Rear Gate Control Module (PRG CM)
      G09485094Courtesy of SUBARU OF AMERICA, INC.
