Front Wiper

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

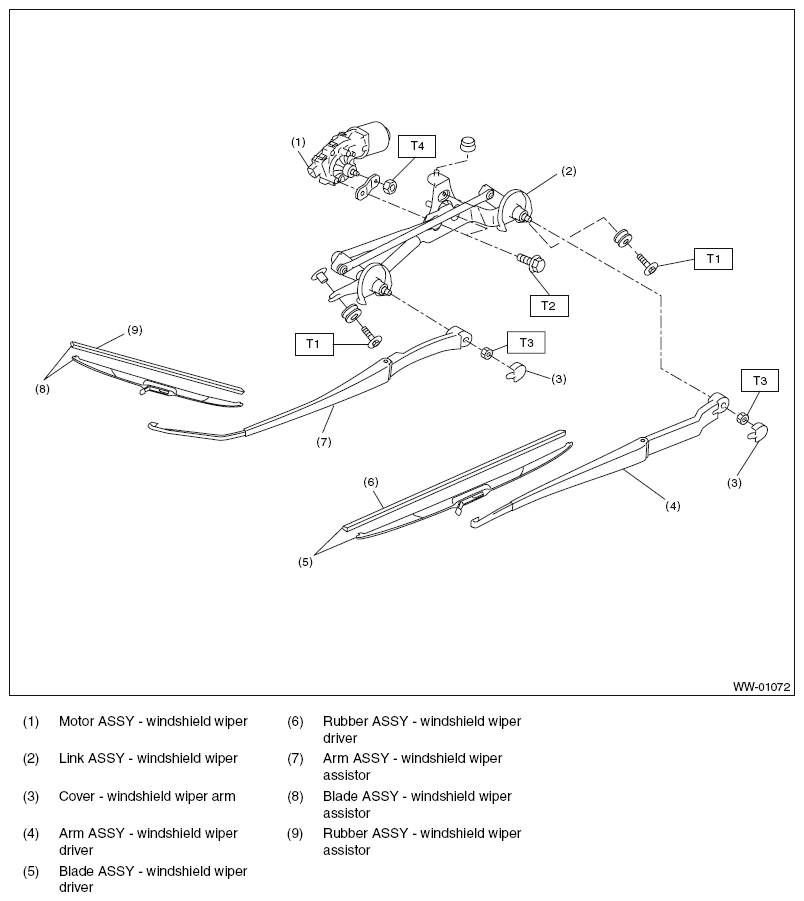

Fig 1: Exploded View Of Front Wiper

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.61, 4.4)

T2: 5.5 (0.56, 4.1)

T3: 22 (2.24, 16.2)

T4: < Ref. to INSTALLATION , Front Wiper Motor and Link. >
