Engine Coolant Temperature Sensor: Installation

Install in the reverse order of removal.

NOTE: Use a new gasket.

Tightening torque:

22 N.m (2.2 kgf-m, 16.2 ft-lb)

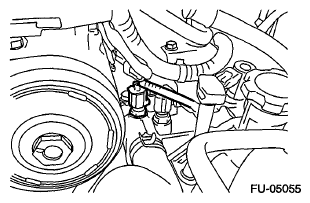

Fig 1: Identifying Engine Coolant Temperature Sensor Connector

Courtesy of SUBARU OF AMERICA, INC.
