General Description
›
Components With Torque Specifications
›
Engine Harness
›

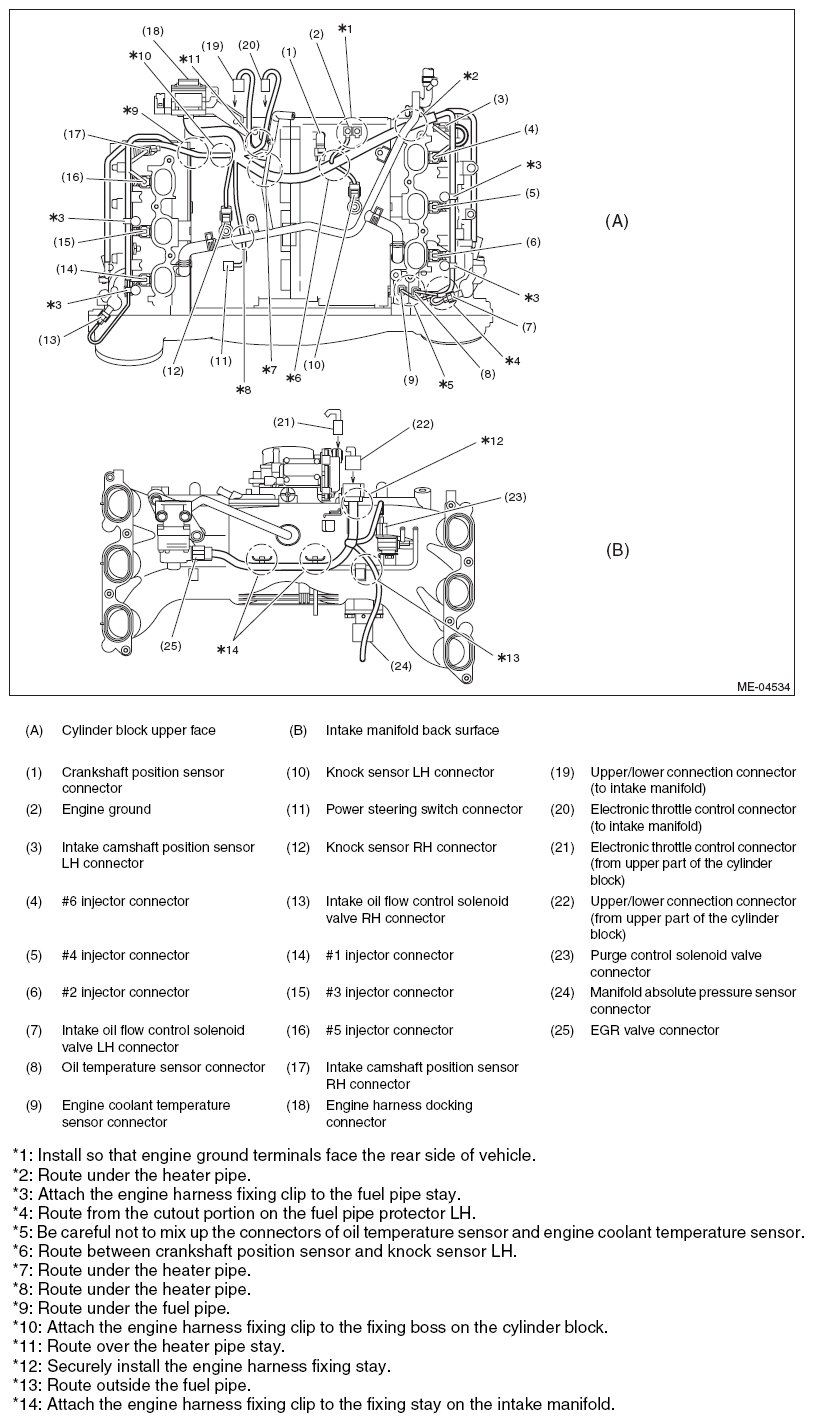

Engine harness assembly diagram 1
Engine harness assembly diagram 1
Fig 1: Engine Harness Assembly Diagram 1
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
