DTC P0160 O2 Sensor Circuit No Activity Detected (Bank2 Sensor2): Wiring Diagram

Engine electrical system. Refer to appropriate ENGINE PERFORMANCE wiring diagram.

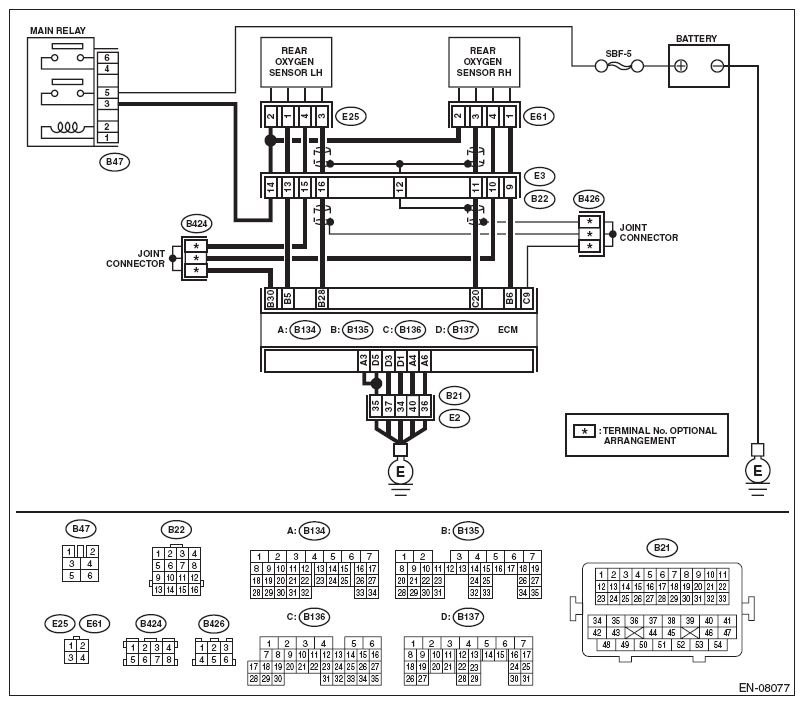

Fig 1: Oxygen Sensor Wiring Diagram (Bank 2 Sensor 2)

Courtesy of SUBARU OF AMERICA, INC.
