Subaru
›
2014
›
XV Crosstrek Hybrid
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Control System (Diagnostics) (Hybrid)
›
Electrical Component Location
›
Location
›
Control Module
Control Module

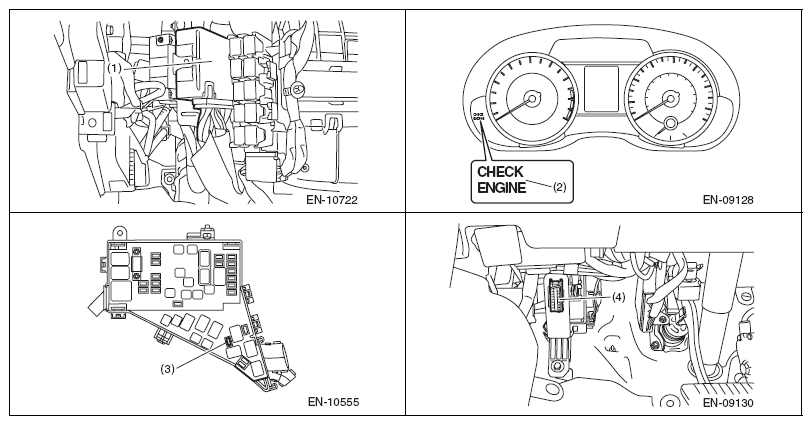

Fig 1: Electrical Components Location - Control Module (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

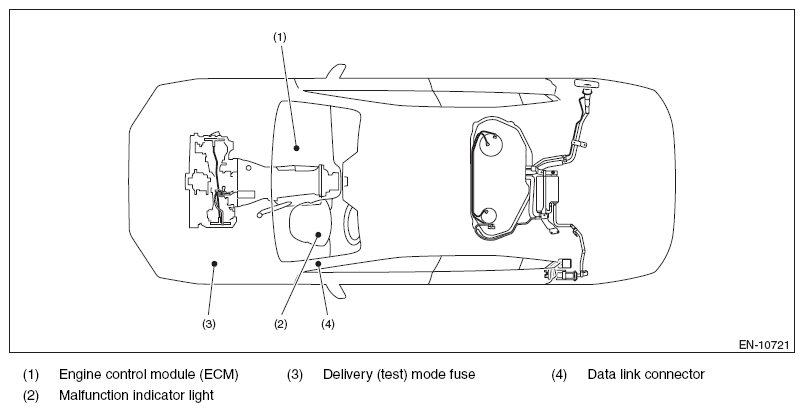

Fig 2: Electrical Components Location - Control Module (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
