Exploded View
Exploded View

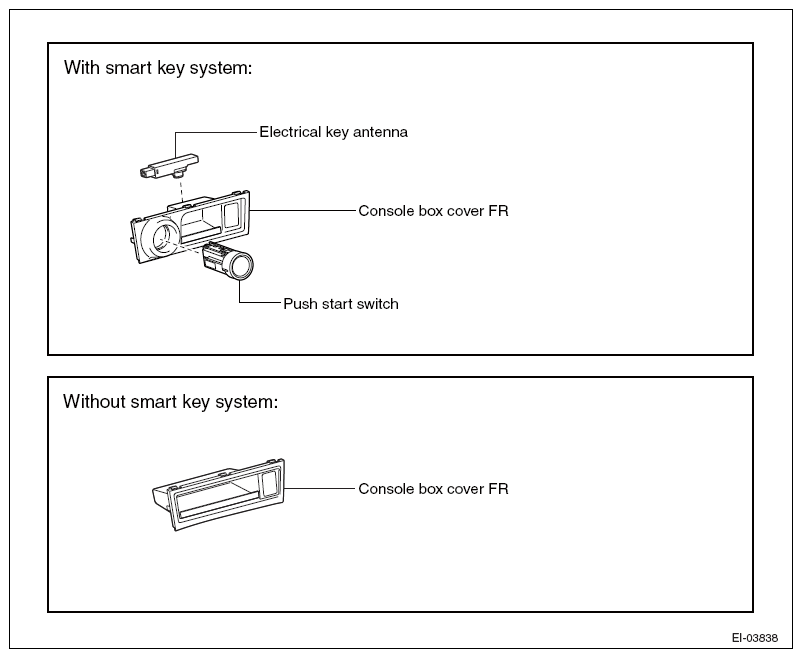

Fig 1: Exploded View Of Front Console Box (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

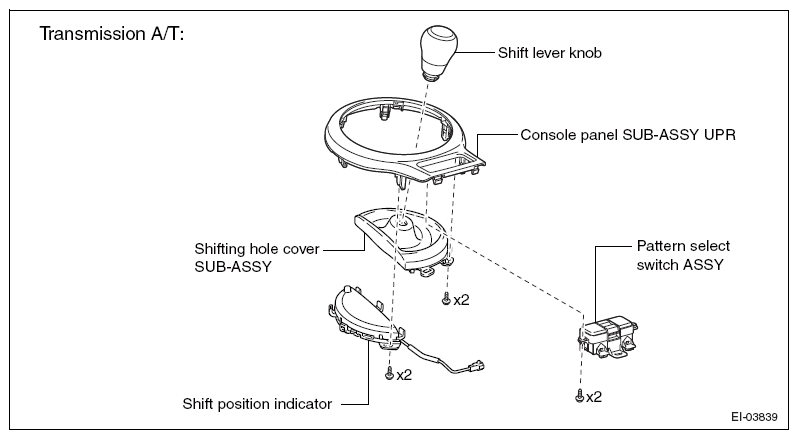

Fig 2: Exploded View Of Front Console Box - Transmission A/T (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

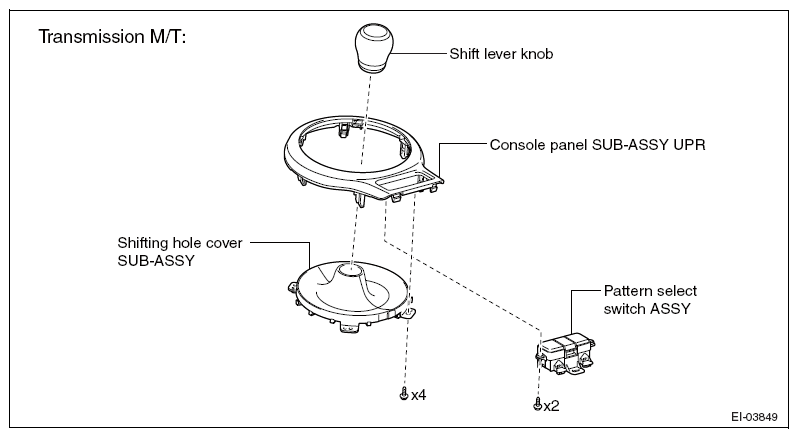

Fig 3: Exploded View Of Front Console Box - Transmission M/T (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

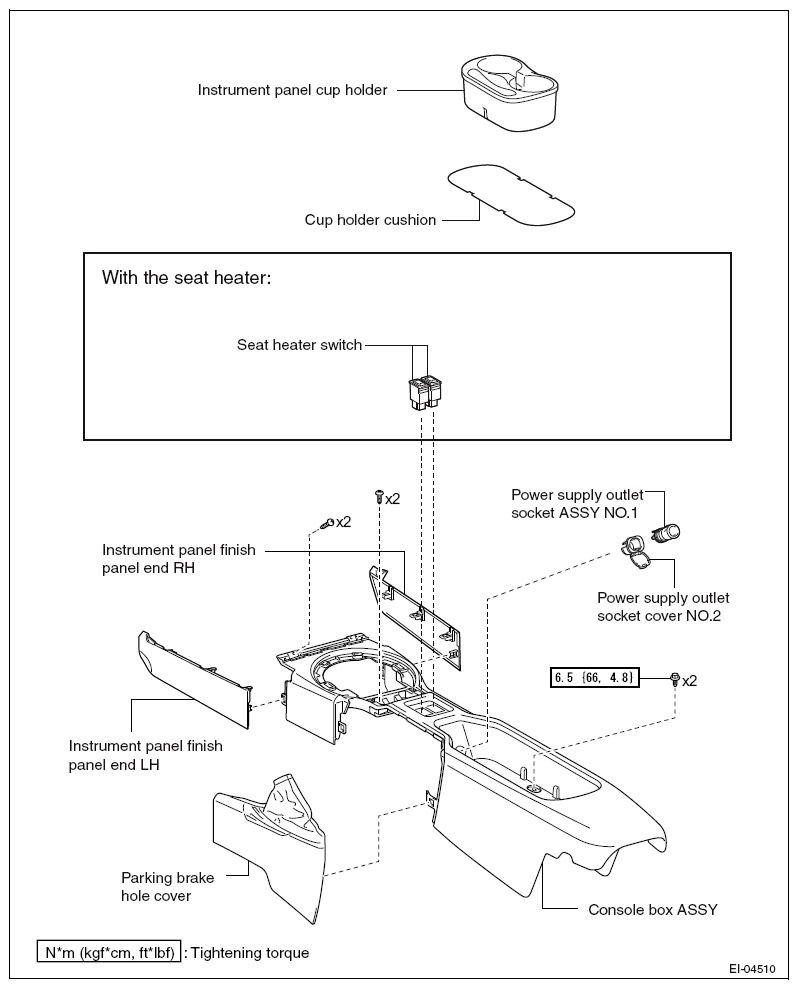

Fig 4: Exploded View Of Front Console Box With Torque Specifications (4 Of 4
Courtesy of SUBARU OF AMERICA, INC.
