Door Locks
›
Power Door Lock Control System
›
Power Door Lock Control System
›
System Diagram
›
Notes
System Diagram: Notes

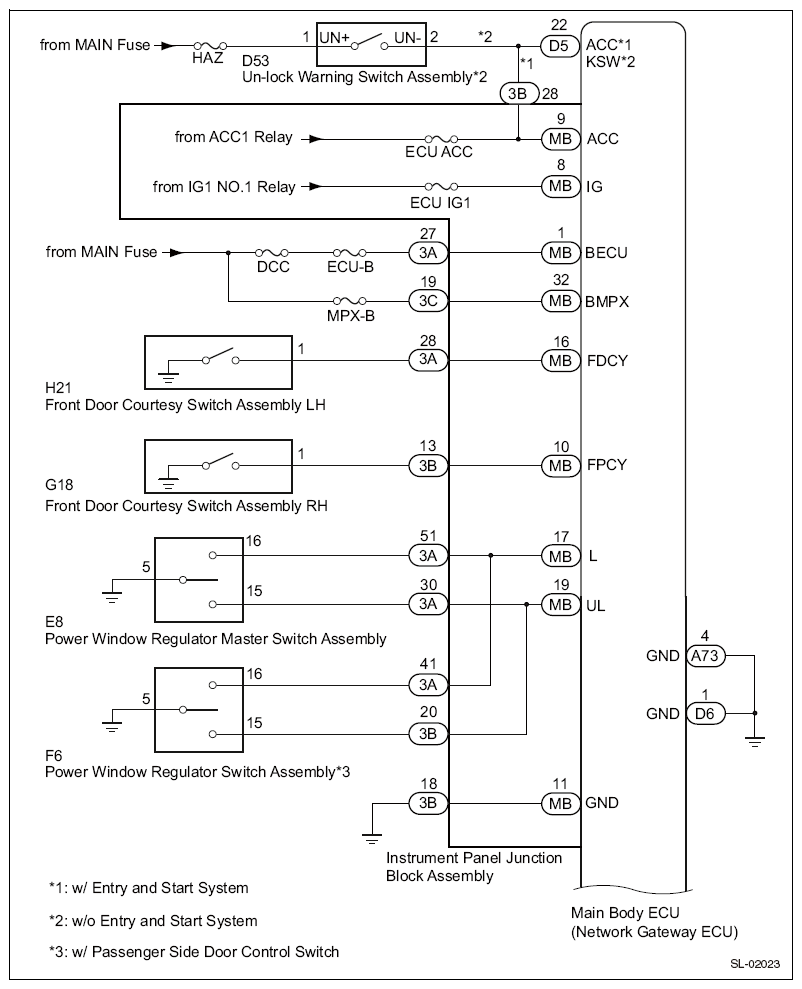

Fig 1: Power Door Lock Control System Diagram (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

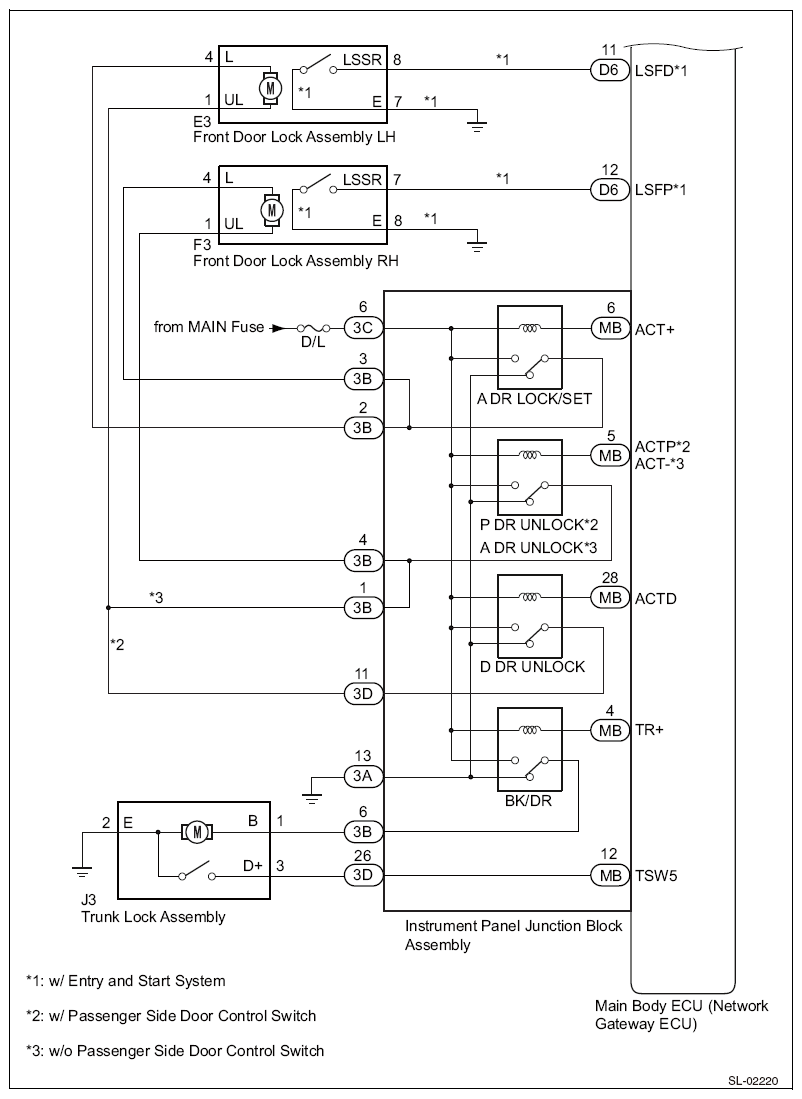

Fig 2: Power Door Lock Control System Diagram (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
