Knock Control Sensor (Fa20)
›
Exploded View
Exploded View

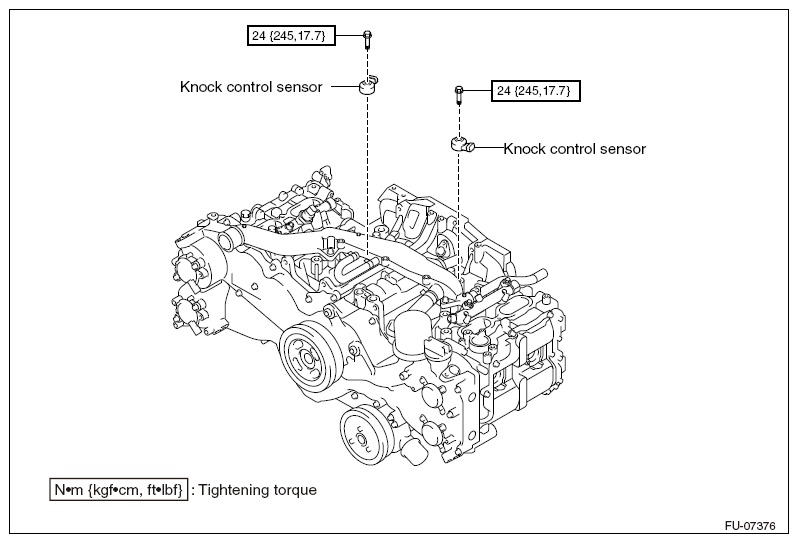

Fig 1: Exploded View Of Knock Control Sensor With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
