Body & Frame
›
Windows
›
Glass & Power Window System
›
Power Window System
›
Circuit Figure
Circuit Figure

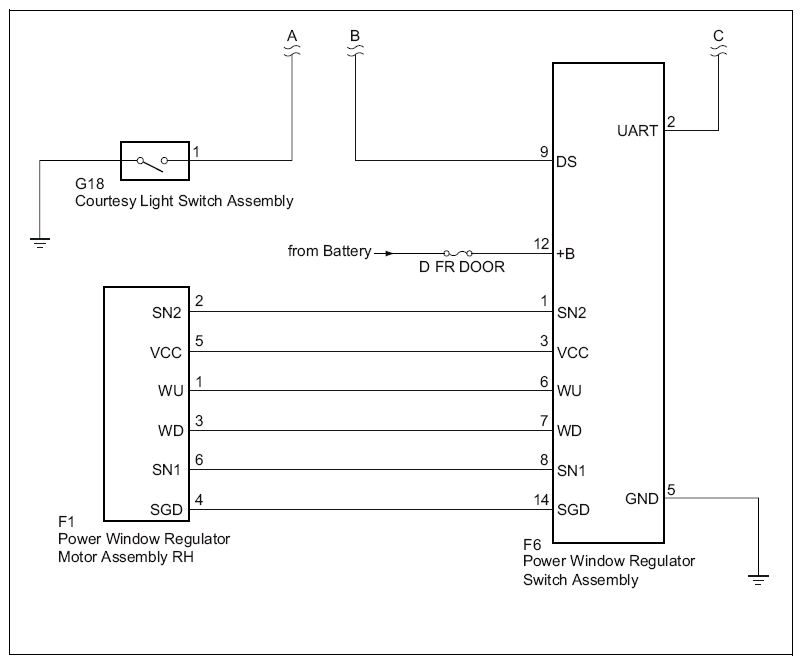

Fig 1: Power Window System Circuit Diagram (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

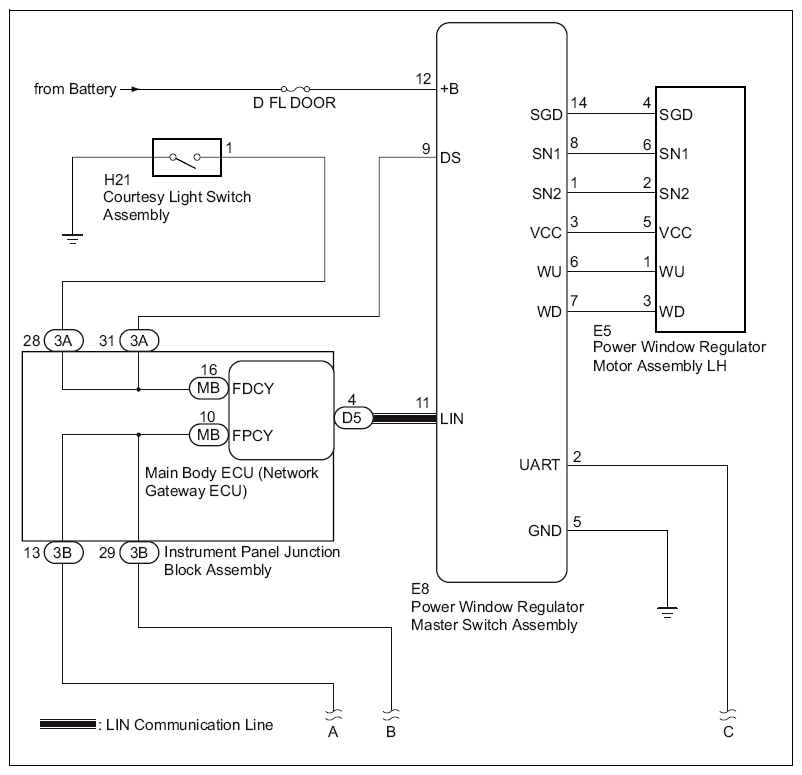

Fig 2: Power Window System Circuit Diagram (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
