Circuit figure

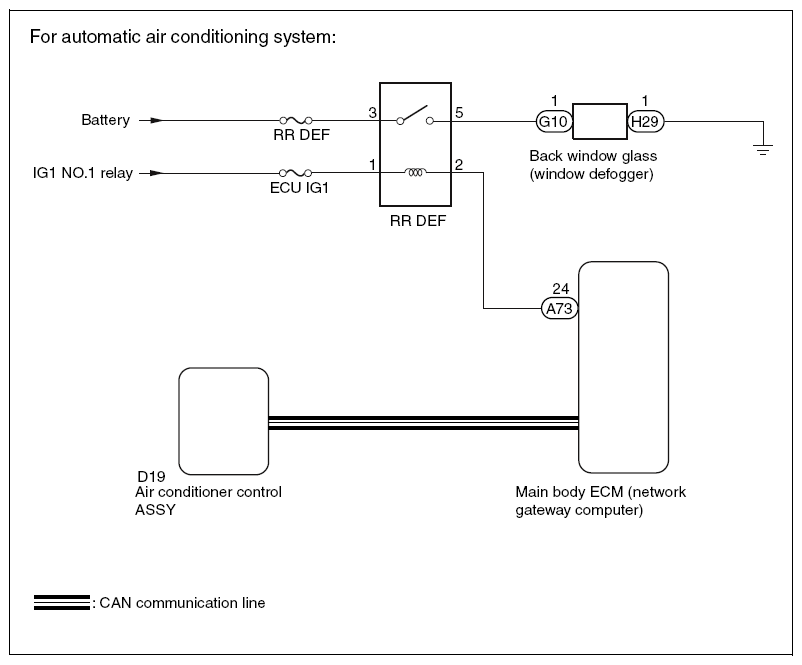

Fig 1: Rear Window Defogger Circuit Diagram (For Automatic Air Conditioning System)

Courtesy of SUBARU OF AMERICA, INC.

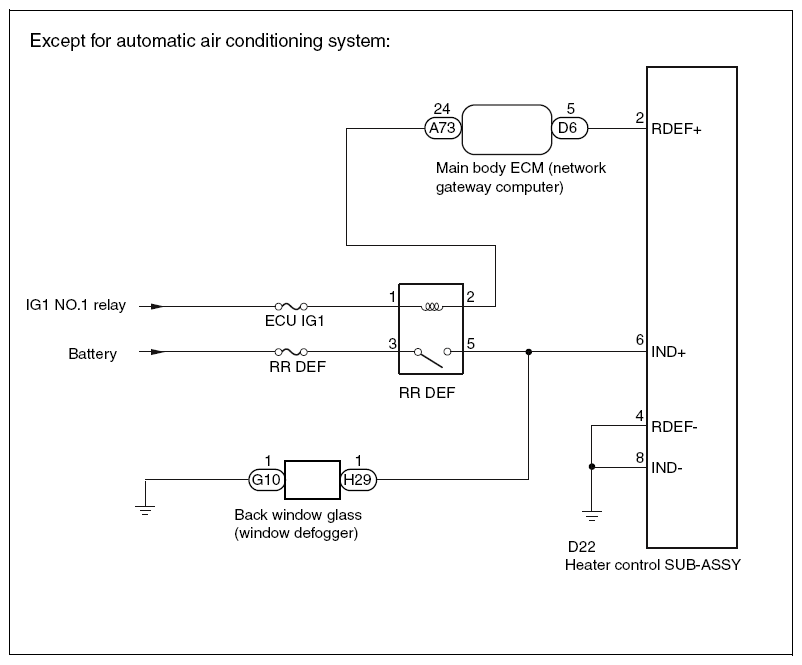

Fig 2: Rear Window Defogger Circuit Diagram (Except For Automatic Air Conditioning System)

Courtesy of SUBARU OF AMERICA, INC.
