Exhaust Pipe Assembly (Fa20)
›
Exploded View
Exploded View

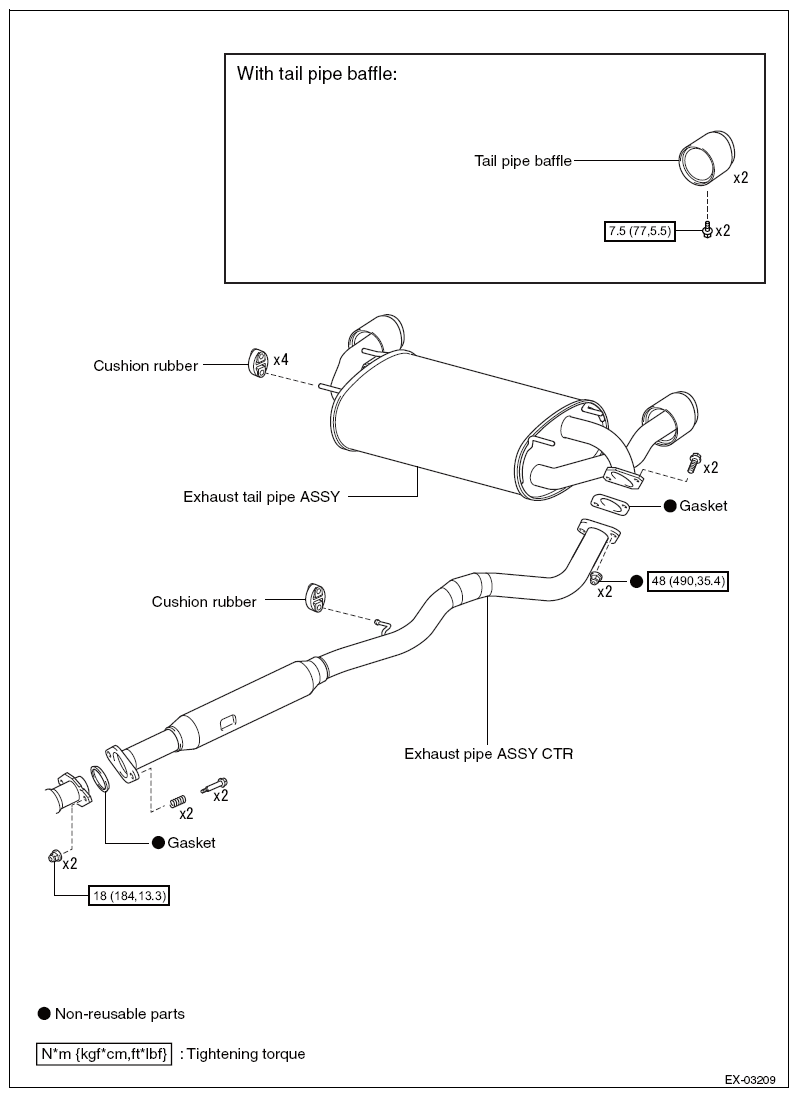

Fig 1: Exploded View Of Exhaust Pipe Assembly With Torque Specifications (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

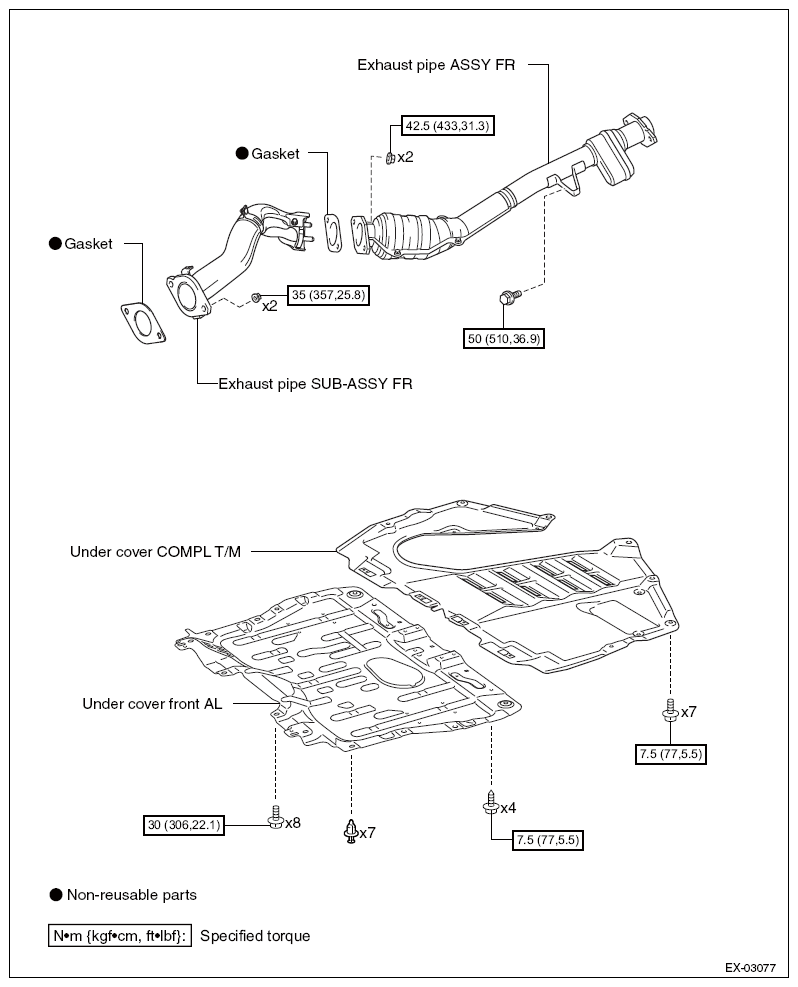

Fig 2: Exploded View Of Exhaust Pipe Assembly With Torque Specifications (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
