Engine Control System Diagnostics - System & Circuit Checks
›
Starter System (Models With Smart Entry & Start System)
›
Circuit figure
Circuit figure

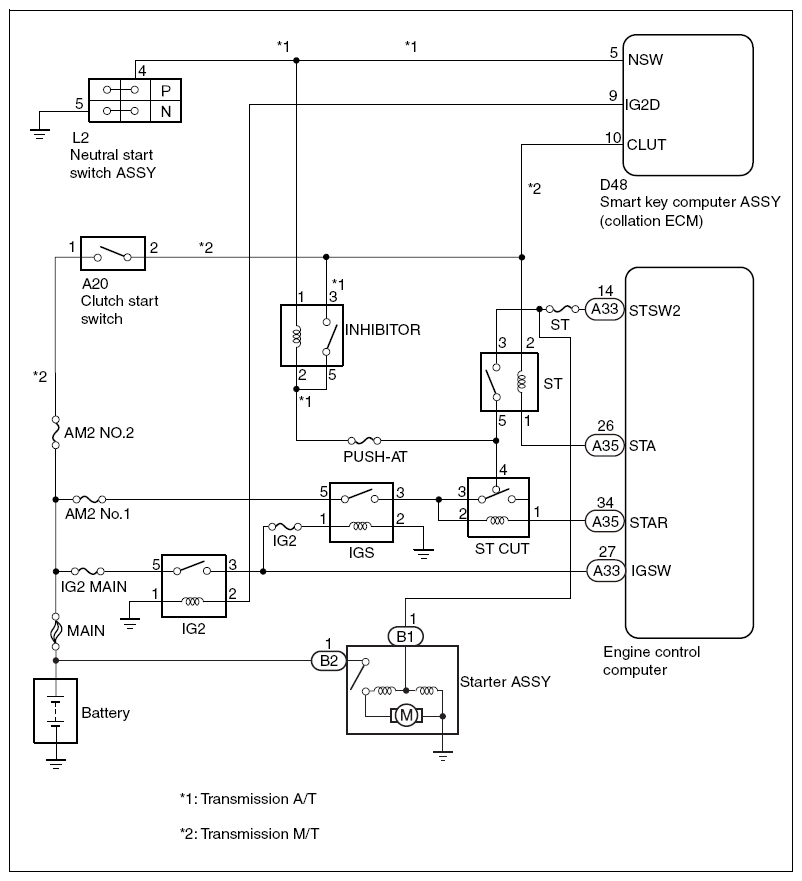

Fig 1: Starter System Circuit Diagram (Models With Smart Entry & Start System)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
