Keyless Entry Control Module: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the trim panel - rear apron RH and trim panel - rear quarter pillar UPR RH. < Ref. to REMOVAL , Rear Quarter Trim. >
  3. Remove the keyless entry control module.
    1. Disconnect the connector.
    2. Remove the bolt and then remove the keyless entry control module.

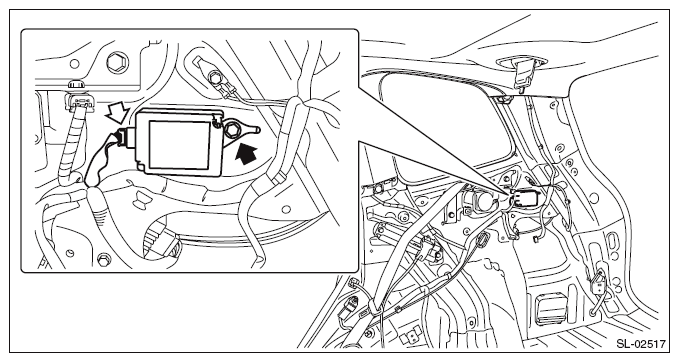

      Fig 1: Locating Keyless Entry Control Module
      G09483012Courtesy of SUBARU OF AMERICA, INC.
