Inner Trim

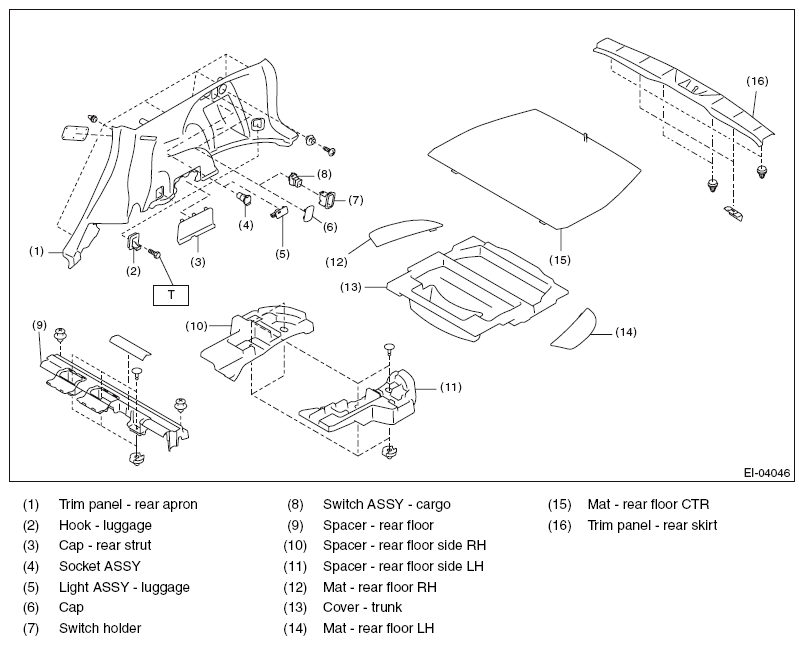

Fig 1: Identifying Inner Trim Components (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.76, 5.5)

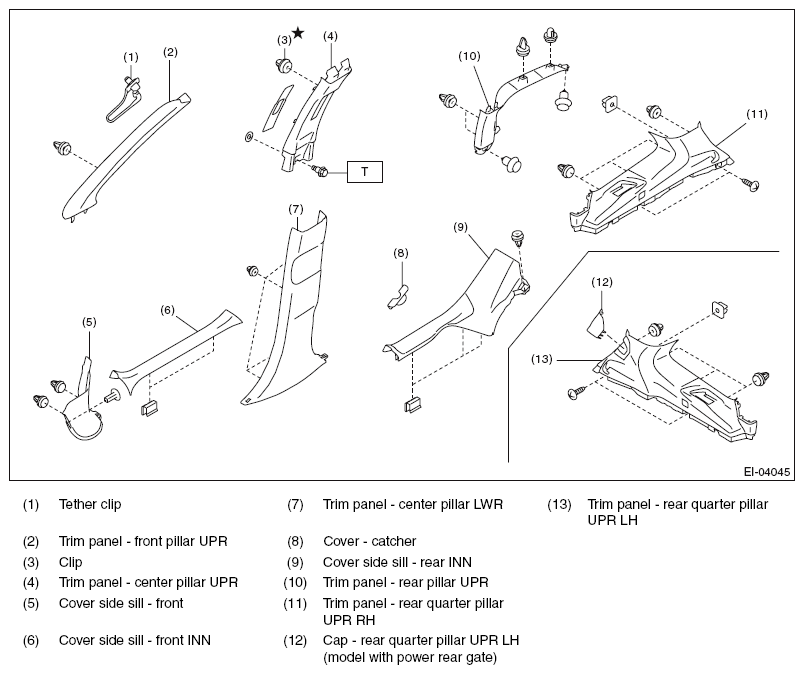

Fig 2: Identifying Inner Trim Components (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.76, 5.5)
