Satellite Switch Assembly Connector End View
Satellite Switch Assembly Connector End View

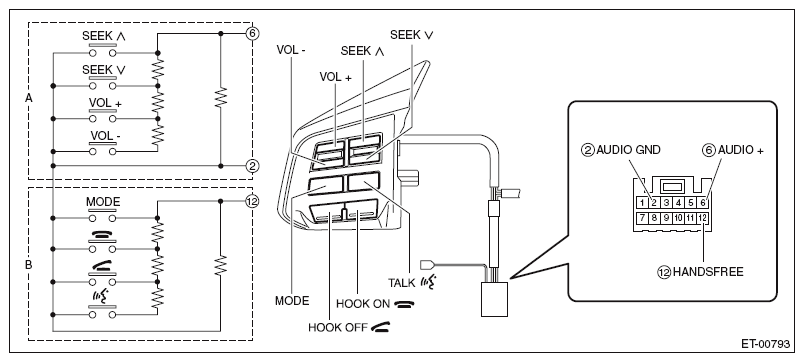

Fig 1: Satellite Switch Assembly Connector End View
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
